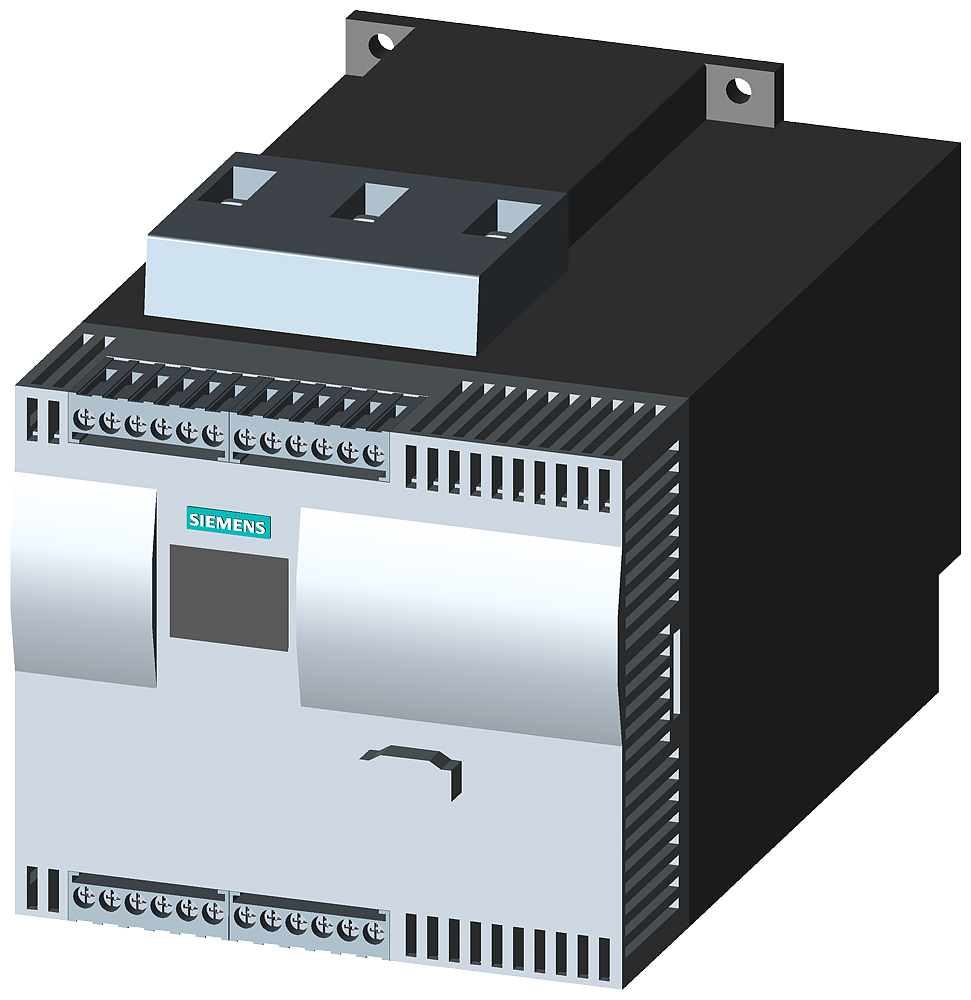

3RW4425-1BC34 - SOFT START, 51A, 15/15/30HP, 120V, SCRW
by Siemens
Original price
$3,069.12
-
Original price
$3,069.12
Original price
$3,069.12
$3,069.12
-
$3,069.12
Current price
$3,069.12
Screw terminals 200-460 V AC, 115 V AC, common-3 88a, 60hp, standard 51a, 30hp, values with 460 V, 50 deg., SIRIUS soft starter
| Item | Value |
|---|---|
| Country of Origin | CZ |
| With display | true |
| Torque control | true |
| Internal bypass | true |
| Function | Single direction |
| Voltage type for actuating | AC |
| Degree of protection (IP) | IP00 |
| Rated operating voltage Ue | 200 V |
| Integrated motor overload protection | true |
| Rated control supply voltage Us at AC 50HZ | 115 V |
| Rated control supply voltage Us at AC 60HZ | 115 V |
| Rated operation current Ie at 40 °C Tu | 57 A |
| Rated power three-phase motor, inline, at 230 V | 15 kW |
| Rated power three-phase motor, inline, at 400 V | 30 kW |
| Rated surrounding temperature without derating | 40 °C |
| Rated power three-phase motor, inside delta, at 230 V | 30 kW |
| Rated power three-phase motor, inside delta, at 400 V | 55 kW |
