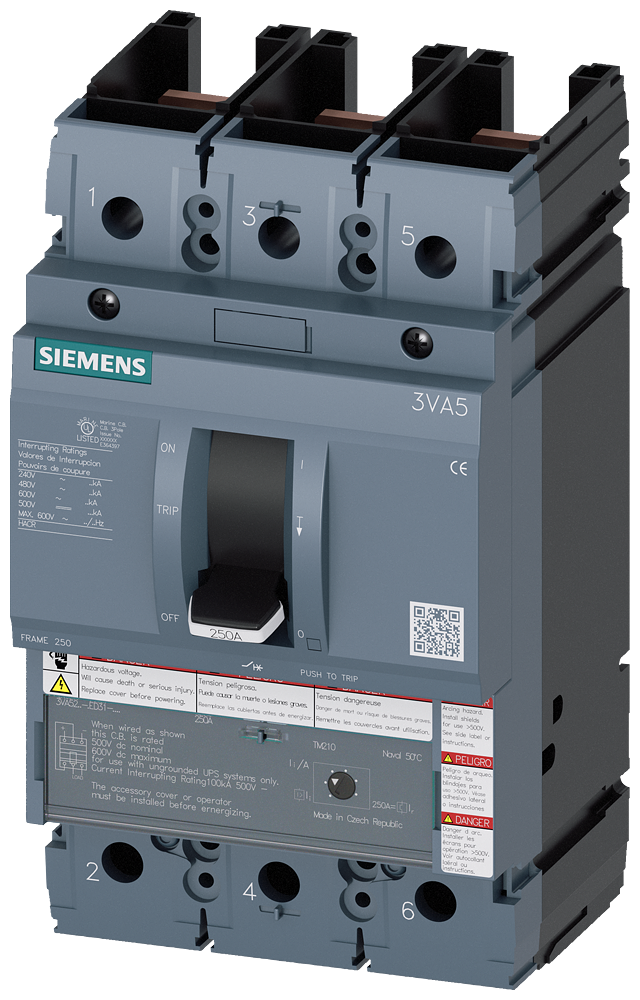

3VA5211-7ED31-1AA0 - BRKR 3VA52 3P 110A 100KA FTFM NAV

3VA5211-7ED31-1AA0 - BRKR 3VA52 3P 110A 100KA FTFM NAV

by Siemens
$670.29 - $670.29
$670.29
$670.29 - $670.29
$670.29

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA52 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 110A 3-POLE (35KAIC AT 600V) (100KAIC AT 480V). TM210 TRIP UNIT WITH FIXED Ir FIXED Ii. SPECIAL FEATURES: WITHOUT LUGS NAVAL RATED 50C. DIMENSIONS (W x H x D) IN: 4.1 x 7.3 x 4.2.



Specifications
Item Value
Country of Origin CZ
Number of poles 3
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 110 A
With switched-off indicator false
Type of control element Rocker lever
Overload release current setting 110 A
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional true
Suitable for DIN rail (top hat rail) mounting true
Type of electrical connection of main circuit Other
Number of auxiliary contacts as change-over contact 0
Position of connection for main current circuit Other
Adjustment range undelayed short-circuit release 1100 A
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Device construction Built-in device fixed built-in technique
