1SDA066802R1 - XT1B 160 TMD 32-450 3p F F
by ABB
Original price
$138.30
-
Original price
$138.30
Original price
$138.30
$138.30
-
$138.30
Current price
$138.30

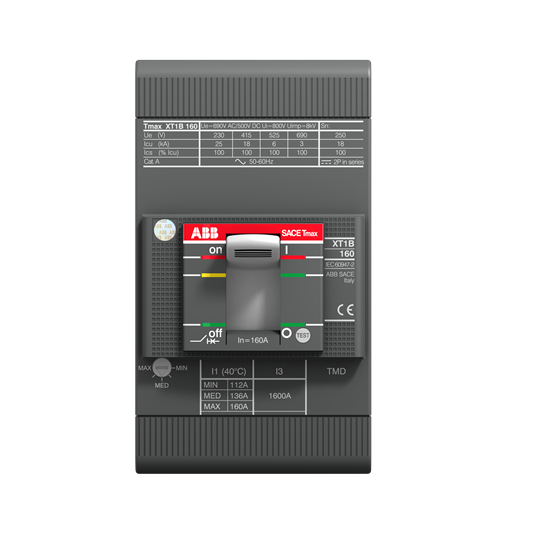

C.BREAKER TMAX XT1B 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 32-450 A
Item | Value |
---|---|
ABB EcoSolutions | Yes |
Item | Value |
---|---|
Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 60.9 % |
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
End of Life Instructions | 9AKK108468A2347 |
Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Product Declaration - EPD | 9AKK108468A1890 |
Item | Value |
---|---|
Environmental Information | 9AKK107991A8215 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | f73e4266-0af4-4cef-b9b3-260c00a910f9 Italy (IT) |
Simplified SCIP | 06390208-d394-410e-9842-b8f1aa84ad09 Poland (PL)ce31830e-4feb-4262-8ac1-c0a505cbd58c Norway (NO)43aad17a-9e80-44f3-9db3-9d6d35642925 Finland (FI)e181dcff-17e3-4829-8167-be0ead9f9f4f Netherlands (NL)7515b418-fb55-4766-95e2-4323a6ecd612 Germany (DE)45a6cb81-5081-41fe-a071-5cf38b8adf65 Denmark (DK)ff639201-5b12-440f-821d-3a6c4ce2953c Germany (DE)f913e764-1c76-4c93-9fc0-2a0875805dc8 Croatia (HR)dc0ff913-83d0-4f15-babc-7a856a1b3255 Czech Republic (CZ)b020eaeb-cf23-445c-95a4-4f103ce43fa5 Poland (PL)fa9663ae-4d74-4267-a4b0-fcfc539c2914 Netherlands (NL)a409c160-db3e-4860-adba-1d89501dd2c5 Netherlands (NL)aebf759a-29ca-419e-b416-0ecf3b3f9577 Estonia (EE)e0db3e96-345c-4b56-91d0-3a02a89a2482 Greece (GR)094c590f-e054-4452-9a76-5fb143f976e9 Portugal (PT)2e656ab5-eff3-4755-bcc3-052950d58ddb Bulgaria (BG)df9ecf69-1483-4540-b0c4-3bdfc49abdad Sweden (SE)c6236bbe-bf16-4be7-9c71-7d042fe7dbe1 Poland (PL)d6074c8c-4abc-41ae-ad9f-fa07173c3572 France (FR)382fe93d-82da-457d-b30e-7032f1b8681e Sweden (SE)908a3719-74a3-4ad9-8c4f-413f7b640fe2 Germany (DE)c0dd578e-17bc-4735-a4bd-35aac606fc6d Germany (DE)f358ac58-4638-4878-b499-0f7191ed7405 France (FR)efc96197-3e4f-4d77-a0c4-4a5c216675e2 Netherlands (NL)9131538b-9a93-4dc4-88d8-690a0b2651e3 Spain (ES)d203dbb9-dd7c-4d5d-ad5c-3e96966e8826 Netherlands (NL) |
Item | Value |
---|---|
Order Code US and Canada | XT1BE3032AFF000XXX |
E-Number (Finland) | 3638629 |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 76.2 mm |
Product Net Height | 130 mm |
Product Net Depth / Length | 70 mm |
Product Net Weight | 1.1 kg |
Item | Value |
---|---|
Circuit Breaker Type to be Associated | Power Distribution |
Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
Current Type | AC/DC |
Electrical Durability | 120 cycles per hour8000 cycle |
Mechanical Durability | 240 cycles per hour25000 cycle |
Number of Poles | 3 |
Opening Time | CB with SOR 15 msCB with UVR 15 ms |
Order Multiple | 1 piece |
Power Loss | at Rated Operating Conditions per Pole 2.1 W |
Product Main Type | SACE Tmax XT |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 32 A |
Rated Frequency (f) | 50 / 60 Hz |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Instantaneous Short-Circuit Current Setting (Ii) | 450 A |
Rated Insulation Voltage (Ui) | 800 V |
Rated Operational Voltage | 690 V AC500 V DC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 25 kA(230 V AC) 25 kA(240 V AC) 25 kA(380 V AC) 18 kA(415 V AC) 18 kA(440 V AC) 11.25 kA(500 V AC) 8 kA(525 V AC) 6 kA(690 V AC) 3 kA(250 V DC) 2 Poles in Series 18 kA(500 V DC) 3 Poles in Series 18 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 25 kA(230 V AC) 25 kA(240 V AC) 25 kA(380 V AC) 18 kA(415 V AC) 18 kA(440 V AC) 15 kA(500 V AC) 8 kA(525 V AC) 6 kA(690 V AC) 3 kA(250 V DC) 2 Poles in Series 18 kA(500 V DC) 3 Poles in Series 18 kA |
Rated Uninterrupted Current (Iu) | 160 A |
Recommended Screw Driver | Main Circuit M6 |
Release | TMD |
Release Type | TM |
Setting Range | 22.4...32 A |
Short-Circuit Performance Level | B |
Standards | IEC |
Sub-type | XT1 |
Terminal Connection Type | Front |
Terminal Type | Bolt |
Tightening Torque | 6 N·m |
Version | F |
CAD Dimensional Drawing | 1SDH001295R0008 |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
