1SDA063414R1 - T4V 250 TMA 125-1250 3p F FC 1150V AC
by ABB
Original price
$1,045.24
-
Original price
$1,045.24
Original price
$1,045.24
$1,045.24
-
$1,045.24
Current price
$1,045.24

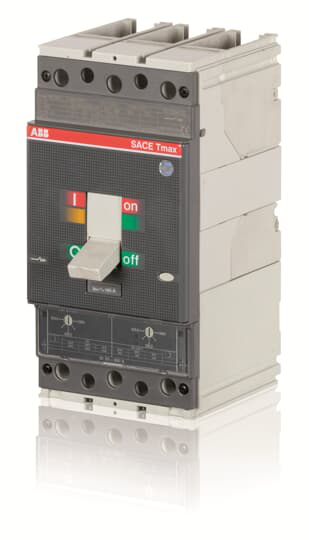

C.BREAKER TMAX T4V 250 1150V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND THERMOMAGNETIC RELEASE TMD R 125-1250 A
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1057 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Item | Value |
|---|---|
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 2.35 kg |
| Item | Value |
|---|---|
| Number of Poles | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.2 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 125 A |
| Rated Operational Voltage | 1150 V AC1000 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 12 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (415 V AC) 200 kA(1000 V AC) 20 kA |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-BreakersFront for Copper Cables |
| Version | F |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
