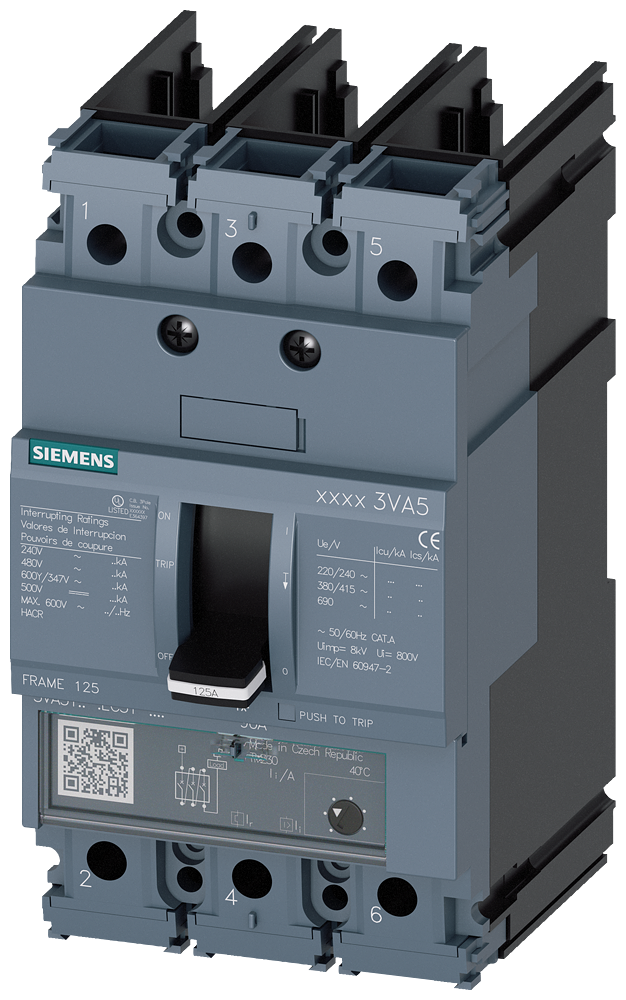

3VA5150-5EF31-0AA0 - BRKR 3VA51 3P 50A 35KA ATAM

3VA5150-5EF31-0AA0 - BRKR 3VA51 3P 50A 35KA ATAM

by Siemens
$207.04 - $207.04
$207.04
$207.04 - $207.04
$207.04

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA51 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 50A 3-POLE (18KAIC AT 600Y/347) (35KAIC AT 480V). TM240 TRIP UNIT WITH ADJUSTABLE Ir ADJUSTABLE Ii. SPECIAL FEATURES: WITHOUT LUGS. DIMENSIONS (W x H x D) IN: 3 x 5.5 x 3.7.



Specifications
Item Value
Number of poles 3
Country of Origin CZ
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 50 A
With switched-off indicator false
Overload release current setting 35 A
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional true
Suitable for DIN rail (top hat rail) mounting true
Type of electrical connection of main circuit Other
Adjustment range undelayed short-circuit release 250 A
Number of auxiliary contacts as change-over contact 0
Position of connection for main current circuit Other
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Device construction Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 55 kA
