1SDA054428R1 - T5V 630 PR221DS-LS/I In=630 3p F F

1SDA054428R1 - T5V 630 PR221DS-LS/I In=630 3p F F

by ABB
$1,829.33 - $1,829.33
$1,829.33
$1,829.33 - $1,829.33
$1,829.33

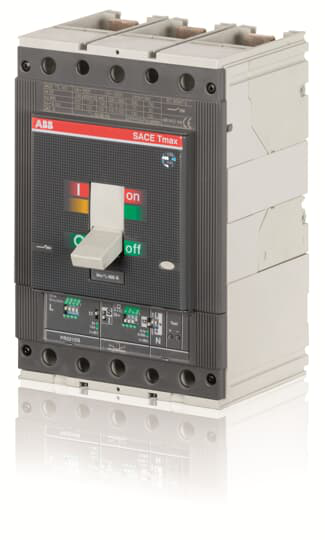

C.BREAKER TMAX T5V 630 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 630



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Toxic Substances Control Act - TSCA 9AKK108467A8326

Environmental
Item Value
Environmental Information 9AKK10103A1056 9AKK108467A6707
REACH Declaration 9AKK108466A1425
RoHS Information 9AKK108466A1424
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Ordering
Item Value
E-Number (Finland) 3655335
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Dimensions
Item Value
Product Net Width 140 mm
Product Net Height 205 mm
Product Net Depth / Length 103.5 mm
Product Net Weight 4.843 kg

Additional Information
Item Value
Electrical Durability 5000 cycle60 cycles per hour
Mechanical Durability 20000 cycle120 cycles per hour
Number of Poles 3
Power Loss at Rated Operating Conditions per Pole 41 W
Product Main Type SACE Tmax T
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Rated Current (In) 630 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 200 kA(230 V AC) 200 kA(380 V AC) 200 kA(400 V AC) 200 kA(415 V AC) 200 kA(440 V AC) 180 kA(500 V AC) 75 kA(690 V AC) 40 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 200 kA(230 V AC) 200 kA(380 V AC) 200 kA(400 V AC) 200 kA(415 V AC) 200 kA(440 V AC) 180 kA(500 V AC) 150 kA(690 V AC) 80 kA
Rated Uninterrupted Current (Iu) 630 A
Release PR221DS-LS/I
Release Type EL
Short-Circuit Performance Level V
Standards IEC
Sub-type T5
Suitable For T5
Suitable for Product Class Moulded Case Circuit Breakers
Terminal Connection Type Fixed Circuit-BreakersFront
Test Voltage Max (Utest) 3500 V
Test Voltage at Industrial Frequency for 1 Minute 3500 V
Version F

Classifications
Item Value
ETIM 9 EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code Q
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409
