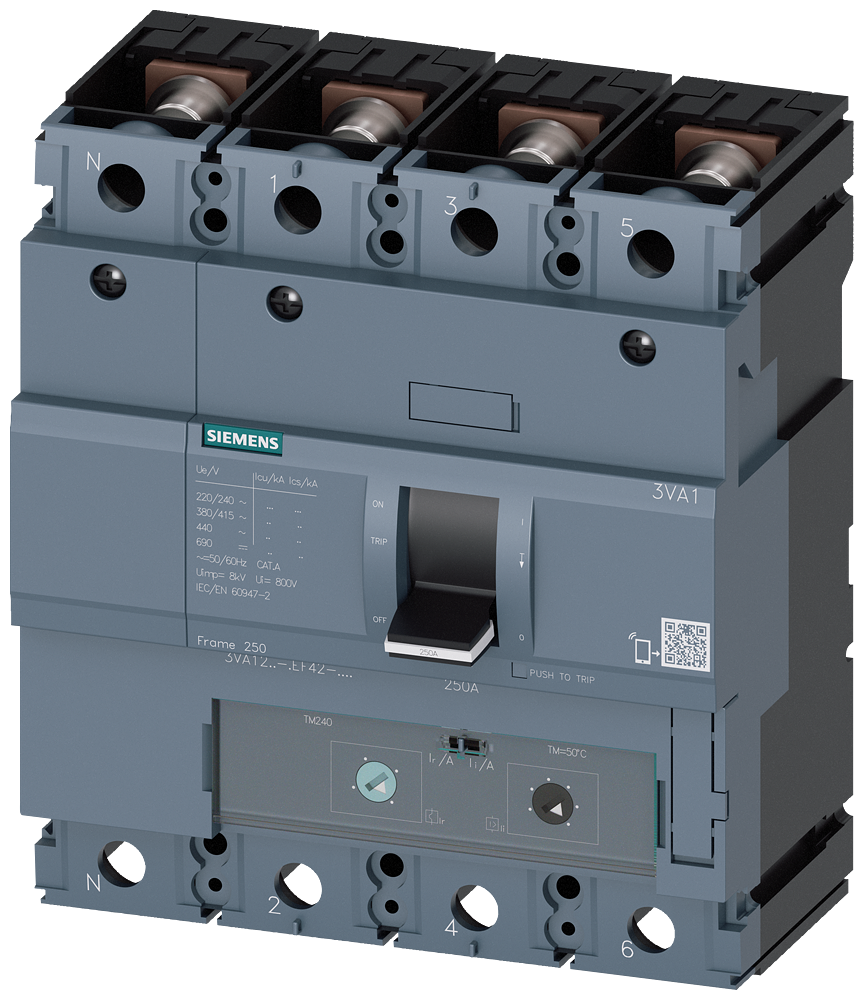

3VA1216-5EF42-0AA0 - BRKR 3VA12 4P 160A 55KA ATAM NUT
by Siemens
Original price
$705.02
-
Original price
$705.02
Original price
$705.02
$705.02
-
$705.02
Current price
$705.02
SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA12 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 160A 4-POLE Icu: (10KAIC AT 690V) (55KAIC AT 415V). TM240 TRIP UNIT WITH ADJUSTABLE Ir ADJUSTABLE Ii. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 5.5 x 6.2 x 3.5.
| Item | Value |
|---|---|
| Number of poles | 4 |
| Country of Origin | CZ |
| Rated voltage | 690 V |
| Motor drive optional | true |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 160 A |
| With switched-off indicator | false |
| Type of control element | Rocker lever |
| Overload release current setting | 112 A |
| Integrated earth fault protection | false |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | false |
| Suitable for DIN rail (top hat rail) mounting | false |
| Adjustment range undelayed short-circuit release | 800 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Position of connection for main current circuit | Front side |
| Device construction | Built-in device fixed built-in technique |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55 kA |
| Type of electrical connection of main circuit | Screw connection |
