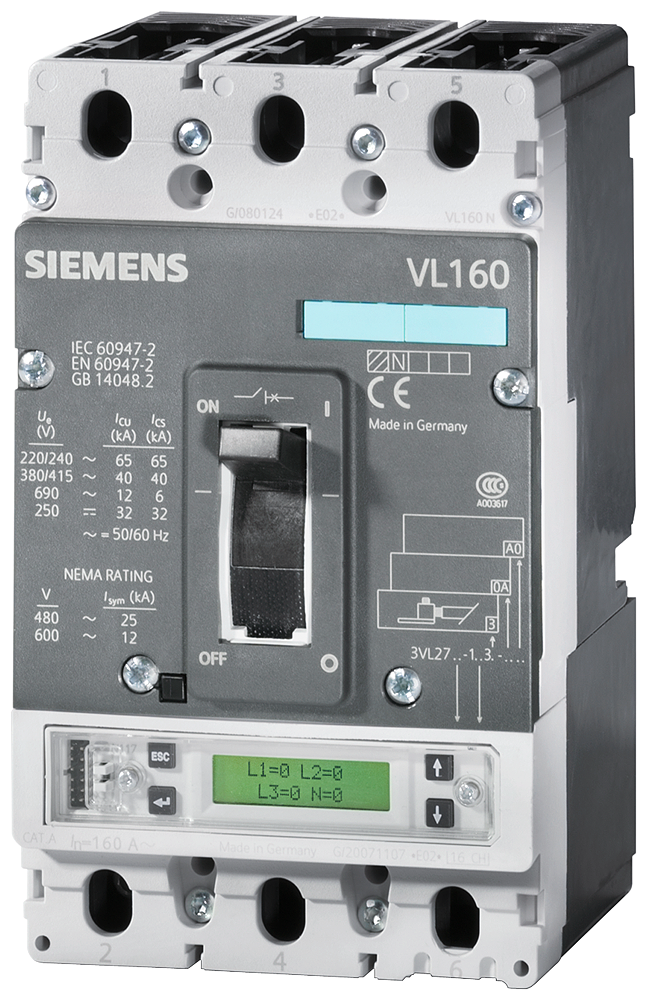

3VL1125-2KM30-0AA0 - BREAKER VL CG 25A T/M 3P 65KA W/O LUGS
by Siemens
Original price
$369.11
-
Original price
$369.11
Original price
$369.11
$369.11
-
$369.11
Current price
$369.11
CIRCUIT BREAKER VL 150X UL, TYPE CG (CAT NO. NCX3B025) NON-INTERCHANGEABLE FRAME W/APPROVAL CIRCUIT BREAKER TO UL489 HIGH BREAKING CAPACITY 3-POLE, NEMA RATING 65KA/480V (MOLDED CASE CIRCUIT BREAKER) OVERCURRENT RELEASE TM, LI FUNCTION TU=40DEGR CELSIUS IN=<(> <<)>25A RATED CURRENT II=300A SHORT-CIRCUIT PROT. IR=25A OVERCURRENT RELEASE FOR SYSTEM PROTECTION W/O CONNECTION ACCESSORIES WITHOUT AUXILIARY RELEASE WITHOUT AUXILIARY/ALARM SWITCH
Item | Value |
---|---|
Country of Origin | DE |
Number of poles | 3 |
Motor drive optional | true |
Motor drive integrated | false |
Degree of protection (IP) | IP20 |
With switched-off indicator | false |
Overload release current setting | 25 A |
Type of control element | Rocker lever |
Integrated earth fault protection | false |
Complete device with protection unit | true |
With integrated under voltage release | false |
DIN rail (top hat rail) mounting optional | false |
Suitable for DIN rail (top hat rail) mounting | false |
Type of electrical connection of main circuit | Other |
Adjustment range undelayed short-circuit release | 300 A |
Number of auxiliary contacts as change-over contact | 0 |
Number of auxiliary contacts as normally open contact | 0 |
Number of auxiliary contacts as normally closed contact | 0 |
Position of connection for main current circuit | Front side |
Device construction | Built-in device fixed built-in technique |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 70 kA |
