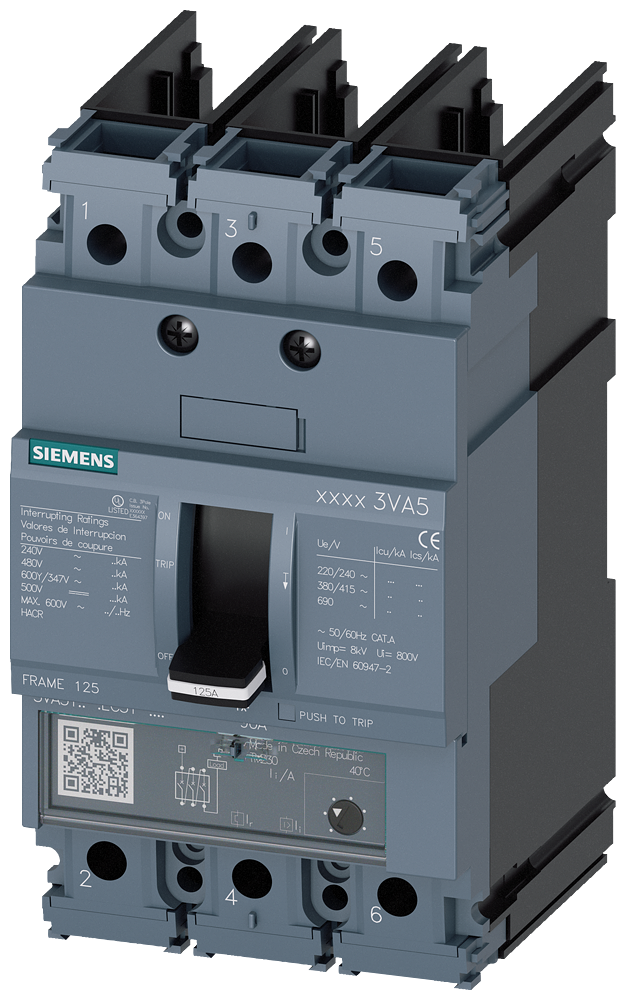

3VA5111-6EC31-0AA0 - BRKR 3VA51 3P 110A 65KA FTAM

3VA5111-6EC31-0AA0 - BRKR 3VA51 3P 110A 65KA FTAM

by Siemens
$345.78 - $345.78
$345.78
$345.78 - $345.78
$345.78

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA51 FRAME WITH HIGH (CLASS H) BREAKING CAPACITY. 110A 3-POLE (25KAIC AT 600Y/347) (65KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii. SPECIAL FEATURES: WITHOUT LUGS. DIMENSIONS (W x H x D) IN: 3 x 5.5 x 3.7.



Specifications
Item Value
Country of Origin CZ
Number of poles 3
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 110 A
With switched-off indicator false
Type of control element Rocker lever
Overload release current setting 110 A
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional true
Suitable for DIN rail (top hat rail) mounting true
Type of electrical connection of main circuit Other
Adjustment range undelayed short-circuit release 550 A
Number of auxiliary contacts as change-over contact 0
Position of connection for main current circuit Other
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Device construction Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 70 kA
