3VA1125-6ED36-0AA0 - BRKR 3VA11 3P 25A 70KA FTFM BOX
by Siemens
Original price
$207.88
-
Original price
$207.88
Original price
$207.88
$207.88
-
$207.88
Current price
$207.88

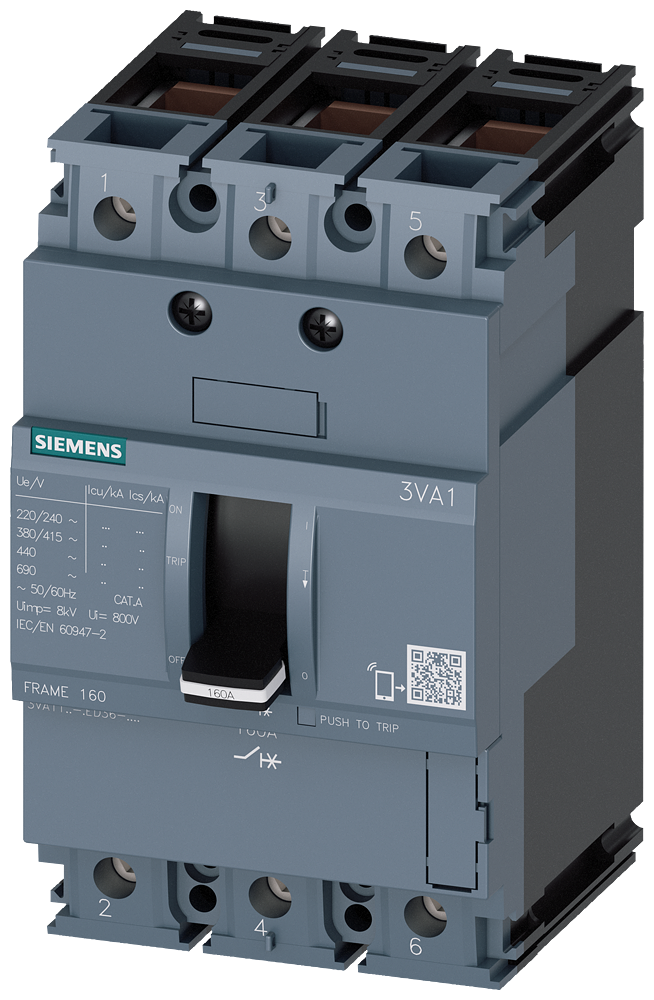

SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA11 FRAME WITH HIGH (CLASS H) BREAKING CAPACITY. 25A 3-POLE Icu: (10KAIC AT 690V) (70KAIC AT 415V). TM210 TRIP UNIT WITH FIXED Ir FIXED Ii. SPECIAL FEATURES: CONNECTION WITH BOX TERMINAL / STEEL WRAP AROUND LUG. DIMENSIONS (W x H x D) IN: 3 x 5.1 x 3.5.
| Item | Value |
|---|---|
| Number of poles | 3 |
| Country of Origin | CZ |
| Rated voltage | 690 V |
| Motor drive optional | true |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 25 A |
| With switched-off indicator | false |
| Overload release current setting | 25 A |
| Type of control element | Rocker lever |
| Integrated earth fault protection | false |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | false |
| Suitable for DIN rail (top hat rail) mounting | false |
| Adjustment range undelayed short-circuit release | 320 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Frame clamp |
| Position of connection for main current circuit | Front side |
| Device construction | Built-in device fixed built-in technique |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 70 kA |
other/Confirmation
Manufacturer
other/Confirmation
Manufacturer
General Product Approval/EAC
EAC
