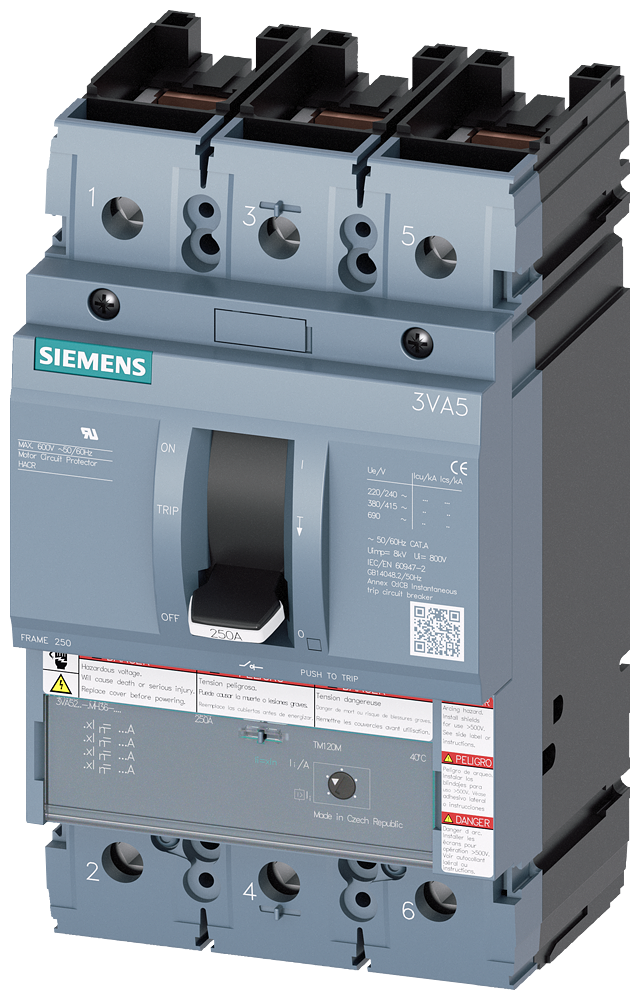

3VA5225-1MU36-0AA0 - BRKR 3VA52 3P 250A 100KA MCP LO AL

3VA5225-1MU36-0AA0 - BRKR 3VA52 3P 250A 100KA MCP LO AL

by Siemens
$861.22 - $861.22
$861.22
$861.22 - $861.22
$861.22

(3-6xIn) OEZ-LK1496-ST250



Specifications
Item Value
Number of poles 3
Country of Origin CZ
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 250 A
With switched-off indicator false
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional false
Suitable for DIN rail (top hat rail) mounting false
Type of electrical connection of main circuit Other
Adjustment range undelayed short-circuit release 750 A
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 110 kA

other/Confirmation
Manufacturer
other/Confirmation
Manufacturer
General Product Approval/EAC
EAC
other/Confirmation
Manufacturer
other/Confirmation
