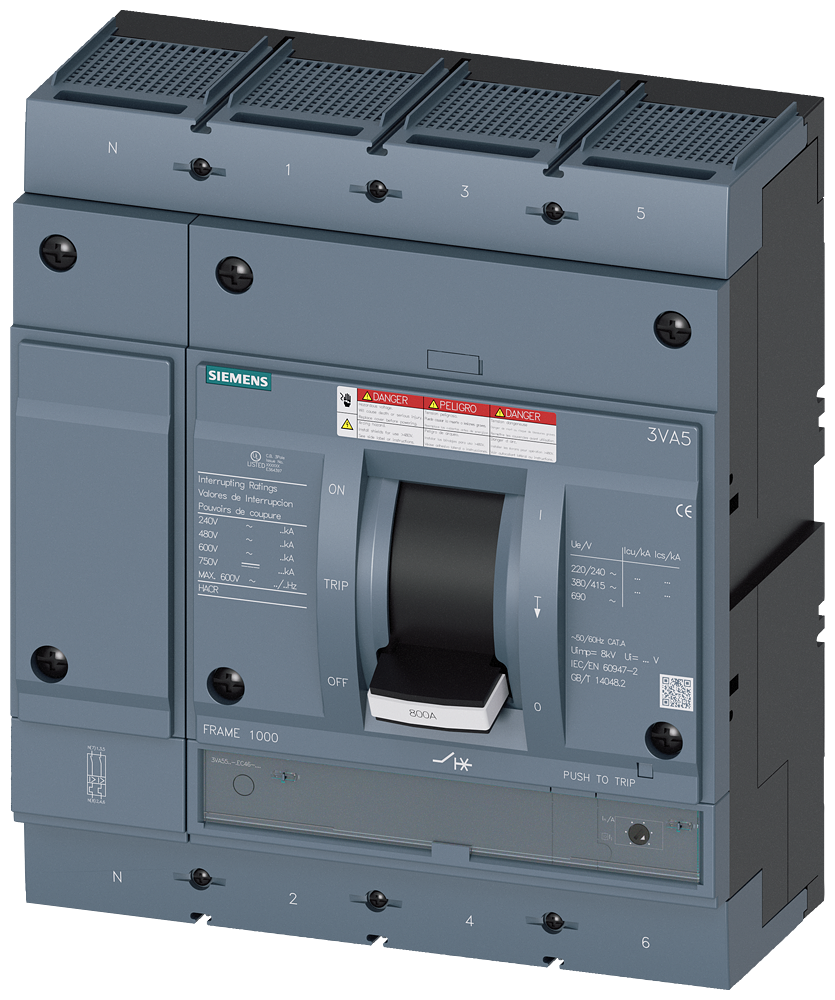

3VA5560-5EC46-0AA0 - BRKR 3VA55 4P 600A 35KA FTAM LUG

3VA5560-5EC46-0AA0 - BRKR 3VA55 4P 600A 35KA FTAM LUG

by Siemens
$2,184.63 - $2,184.63
$2,184.63
$2,184.63 - $2,184.63
$2,184.63

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 600A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii. SPECIAL FEATURES: LINE AND LOAD LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 11.1 x 12.5 x 5.8.



Specifications
Item Value
Country of Origin CZ
Number of poles 4
Rated voltage 690 V
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 600 A
With switched-off indicator false
Type of control element Rocker lever
Overload release current setting 600 A
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional true
Suitable for DIN rail (top hat rail) mounting true
Type of electrical connection of main circuit Other
Number of auxiliary contacts as change-over contact 0
Adjustment range undelayed short-circuit release 3000 A
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 55 kA
