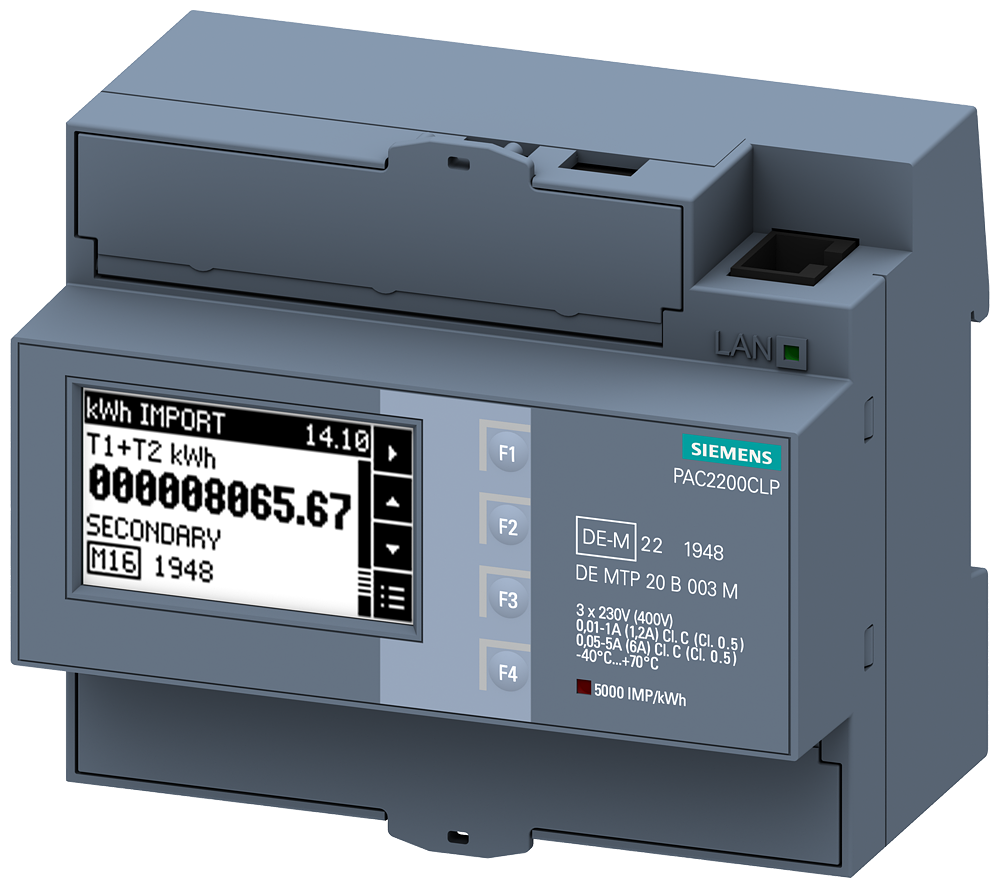

7KM2200-2EA30-1JA1 - PAC2200, LCD, DIN RAIL, 5A Modbus TCP, MID
by Siemens
Original price
$328.01
-
Original price
$328.01
Original price
$328.01
$328.01
-
$328.01
Current price
$328.01
PAC2220 LCD DIN Rail Mount Power Meter, 20+ Measurements, 1-Dig In <(>&<)> 1-Dig Out, Modbus TCP, MID Certified L-L: 400 V, L-N: 230 V, 5 Amp, strd rail instr., 3-phase, apparent /active/reactive energy, self-powered, screw terminals
Item | Value |
---|---|
Country of Origin | DE |
Pulse type | S0 |
Calibrated | true |
With lock code | true |
Tariff type | Two-tariff |
Nominal current (In) | 5 A |
Pulse output | Electrical |
Max. current (Imax) | 100 A |
Type of meter | Electronic |
Escapement mechanism | true |
Type of indication | Digital |
Nominal voltage (Un) L-L | 3 V |
Nominal voltage (Un) N-L | 3 V |
Suitable for | Purchase/supply |
Model | Measurement transformer |
Degree of protection (IP) | IP40 |
Measuring type load profile | false |
Width in number of modular spacings | 6 |
Number of positions total (counter) | 12 |
Approval | Measuring Instruments Directive |
Pole type | Three conductor/four conductor |
Energy type | Effective power and blind power |
