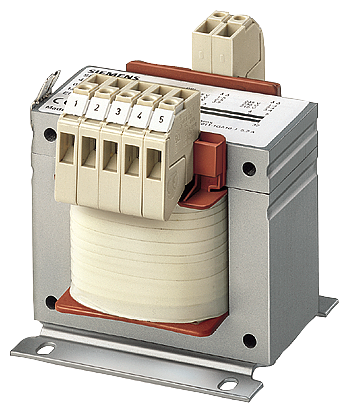

4AM3442-4TN00-0EA0 - TRANSF, PRI 230V, SEC 24V
by Siemens
Original price
$135.79
-
Original price
$135.79
Original price
$135.79
$135.79
-
$135.79
Current price
$135.79
>SAFETY ISOLATING TRANSFORMER< >CONTROL CIRCUIT TRANSFORMER< RAILS; EN 61558-2-2, -2-6 INSTALLATION:SCREWS/MOUNTING CONNECTION; TERMINALS:SCREW/TAB TA/ISOKL:40 /B; IP00; TYPE OF VECTOR GR./SHIELD WNG.:II0 /0; ISEC(A):4,17; F(HZ):50...60; UPRI(V):230+/-5%; USEC(V):24; PN/PN(S6)(KVA):0,1 /0,31; TRANSFORMER SITAS; PHASES:1;
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Width | 86 millimetre |
| Depth | 102 millimetre |
| Height | 98 millimetre |
| Protection type IP | IP00 |
| max. primary voltage 1 | 242 volt |
| max. primary voltage 2 | 230 volt |
| max. primary voltage 3 | 218 volt |
| min. primary voltage 1 | 242 volt |
| min. primary voltage 2 | 230 volt |
| min. primary voltage 3 | 218 volt |
| max. secondary voltage 1 | 24 volt |
| min. secondary voltage 1 | 24 volt |
| Rated performance | 100 volt ampere |
| designed as safety transformer | false |
| suitable for series installation | false |
| designed as isolating transformer | false |
| designed as compensator transformer | false |
| relative short-circuit voltage | 7.7 percent |
| suitable for circuit-board mounting | false |
| Insulation Material Class acc. to IEC 85 | B |
