1SCA022627R1980 - OFAF0H10 HRC FUSE LINK
by ABB
Original price
$45.91
-
Original price
$45.91
Original price
$45.91
$45.91
-
$45.91
Current price
$45.91

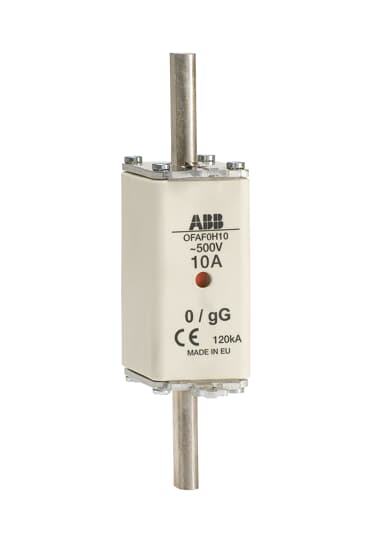

OFAF0H10 HRC Fuse Link Size NH0, gG
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Environmental Information | 1SCC317009D0201 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Item | Value |
|---|---|
| Minimum Order Quantity | 3 piece |
| Customs Tariff Number | 85361010 |
| Country of Origin | Hungary (HU) |
| Item | Value |
|---|---|
| Product Net Width | 30 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.21 kg |
| Item | Value |
|---|---|
| Power Loss | 1.1 W |
| Fuse Size | NH0 |
| Fuse System | DIN |
| Standards | IEC 60269 |
| Fuse Type | gG |
| Rated Current (In) | 10 A |
| Rated Voltage (Ur) | 500 V |
| Item | Value |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SCC317009D0201 |
| Item | Value |
|---|---|
| Object Classification Code | F |
| ETIM 9 | EC000055 - Knife blade fuse |
| eClass | V11.1 : 27142005 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3112810 |
