3LD2566-4VD53 - DISC SW 63A ENCL ROT HDL R/Y 6P AUX
by Siemens
Original price
$216.86
-
Original price
$216.86
Original price
$216.86
$216.86
-
$216.86
Current price
$216.86

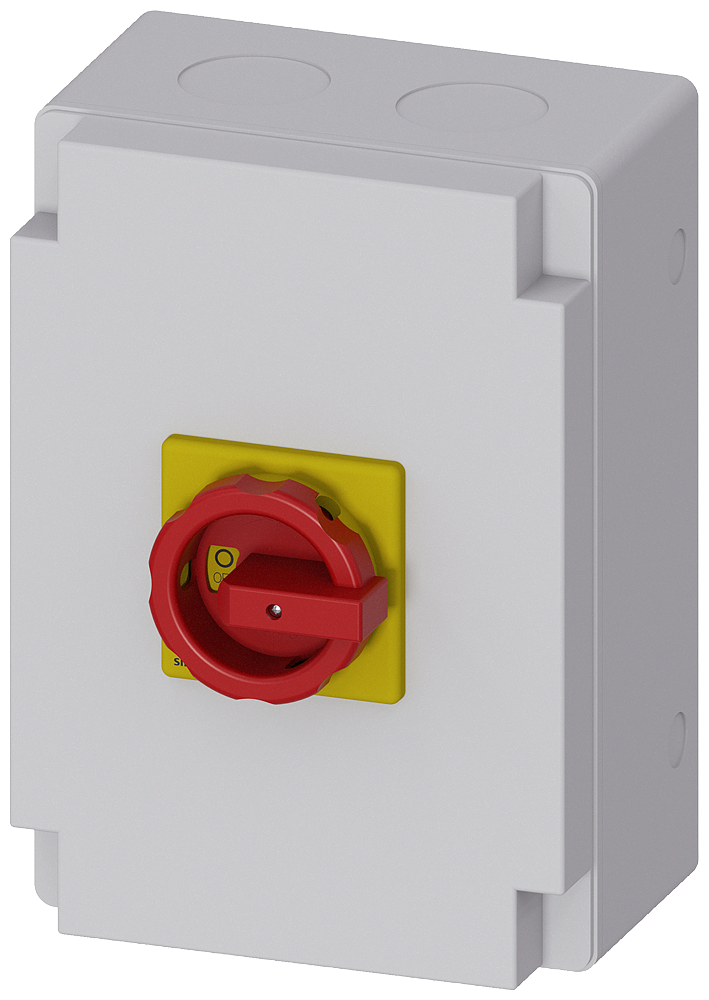

SENTRON, 3LD switch disconnector, EMERGENCY-STOP switch, 6-pole, Iu:63 A, Operational power / at AC-23 A at 400 V: 22 kW, molded- plastic enclosure for metric threaded joint, 1NC, 1NO, rotary operating mechanism, red/yellow
Item | Value |
---|---|
Number of poles | 6 |
Country of Origin | DE |
Interlockable | true |
Number of switches | 1 |
Colour control element | Red |
Motor drive optional | false |
Version as main switch | true |
Motor drive integrated | false |
Version as safety switch | true |
Voltage release optional | false |
Rated permanent current Iu | 63.0 A |
Degree of protection (NEMA) | Other |
Version as reversing switch | false |
Suitable for ground mounting | false |
Max. rated operation voltage Ue AC | 690 V |
Suitable for front mounting centre | true |
Suitable for front mounting 4-hole | false |
Type of control element | Short thumb-grip |
Rated operation power at AC-3, 400 V | 19 kW |
Degree of protection (IP), front side | IP65 |
Rated operation power at AC-23, 400 V | 22 kW |
Rated permanent current at AC-21, 400 V | 63 A |
Rated permanent current at AC-23, 400 V | 43 A |
Version as emergency stop installation | true |
Version as maintenance-/service switch | true |
Rated short-time withstand current lcw | 1.26 kA |
Number of auxiliary contacts as change-over contact | 0 |
Number of auxiliary contacts as normally open contact | 1 |
Number of auxiliary contacts as normally closed contact | 1 |
Type of electrical connection of main circuit | Frame clamp |
Device construction | Built-in device fixed built-in technique |
