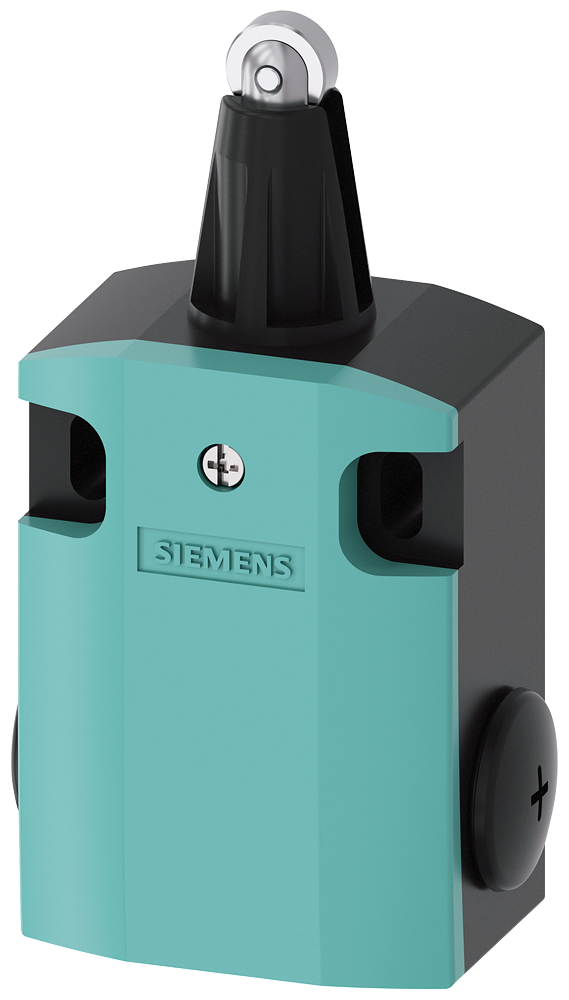

3SE5122-0CD02-1AA7 - LIMIT SW.ST RD PLUNGER.1NO+1NC.M20. F=30
by Siemens
Original price
$66.69
-
Original price
$66.69
Original price
$66.69
$66.69
-
$66.69
Current price
$66.69
Position switch Metal enclosure 56 mm wide Device connection 3 x (M20 x 1.5) 1 NO/1 NC quick action contacts, Roller plunger with 3 mm overtravel, Stainless steel roller 13 mm Actuating/restoring force 30 N, only available as complete unit
| Item | Value |
|---|---|
| Country of Origin | DE |
| Width sensor | 56 mm |
| Forced opening | true |
| Material housing | Metal |
| Type of interface | None |
| Height of sensor | 37.8 mm |
| Output electronic | false |
| Length of sensor | 116.5 mm |
| Coating housing | Lacquered |
| With status indication | false |
| Degree of protection (NEMA) | 12 |
| Construction type housing | Cuboid |
| Switching function latching | false |
| Suitable for safety functions | true |
| Type of control element | Roller cam |
| Degree of protection (IP) | IP66/IP67 |
| Number of safety auxiliary contacts | 1 |
| Switching function | Quick-break switch |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 24 V | 6 A |
| Rated operation current Ie at DC-13, 24 V | 3 A |
| Number of contacts as normally open contact | 1 |
| Rated operation current Ie at AC-15, 125 V | 6 A |
| Ambient temperature during operating | -25 °C |
| Number of contacts as normally closed contact | 1 |
| Type of interface for safety communication | None |
| Rated operation current Ie at DC-13, 125 V | 0.55 A |
| Type of electric connection | Cable entry metrical |
| Alignment of the control element | Roller cam straight |
