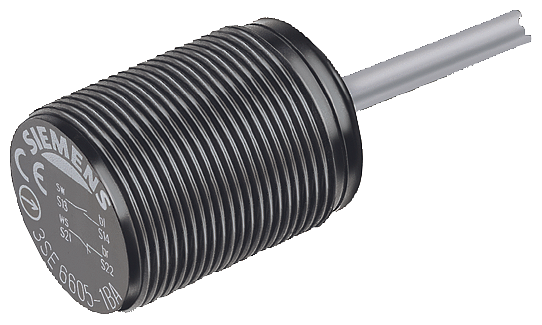

3SE6605-1BA02 - MAGNETIC SWITCH, SWITCH BLOCK 1NO+1NC, M12
by Siemens
Original price
$95.78
-
Original price
$95.78
Original price
$95.78
$95.78
-
$95.78
Current price
$95.78
Pin3=13, pin4=14 pin assign. pin1=21, pin2=22, with m12 plug 4-pole, contacts 1NC/1NO, switch block, round m30, magnetic switch
| Item | Value |
|---|---|
| Voltage type | AC/DC |
| Country of Origin | DE |
| Diameter sensor | 30 mm |
| Length of sensor | 48 mm |
| Material housing | Plastic |
| Type of actuation | Magnet |
| SIL according to IEC 61508 | 3 |
| Ambient temperature | -25 °C |
| Degree of protection (IP) | IP67 |
| Category according to EN 954-1 | 4 |
| Protected switch distance ON | 5 mm |
| Protected switch distance OFF | 15 mm |
| Suitable for safety functions | true |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Type of electric connection | Connector M8 |
| Performance level acc. EN ISO 13849-1 | Level e |
| Construction type housing | Cylinder, screw-thread |
| Cross-/short circuit identification possible | true |
| Mechanical mounting condition for sensor | Not flat |
