1SBL367001R1100 - AF52-30-00-11 24-60V50/60HZ 20-60VDC Contactor

1SBL367001R1100 - AF52-30-00-11 24-60V50/60HZ 20-60VDC Contactor

by ABB
$202.21 - $202.21
$202.21
$202.21 - $202.21
$202.21

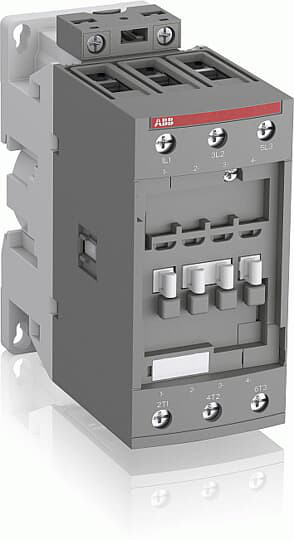

The AF52-30-00-11 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 22 kW / 400 V AC (AC-3) or 40 hp / 480 V UL and switching power circuits up to 100 A (AC-1) or 80 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.



Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Dimensions
Item Value
Product Net Width 55 mm
Product Net Depth / Length 111 mm
Product Net Height 125.5 mm
Product Net Weight 0.97 kg

Technical
Item Value
Number of Main Contacts NO 3
Number of Main Contacts NC 0
Number of Auxiliary Contacts NO 0
Number of Auxiliary Contacts NC 0
Standards IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
Rated Operational Voltage Main Circuit 690 V
Rated Frequency (f) Control Circuit 50 / 60 HzMain Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith) acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A
Rated Operational Current AC-1 (Ie) (690 V) 40 °C 100 A(690 V) 60 °C 80 A(690 V) 70 °C 70 A
Rated Operational Current AC-3 (Ie) (415 V) 60 °C 53 A(440 V) 60 °C 53 A(500 V) 60 °C 45 A(690 V) 60 °C 35 A(380 / 400 V) 60 °C 53 A(220 / 230 / 240 V) 60 °C 53 A
Rated Operational Current AC-3e (Ie) (415 V) 60 °C 53 A(440 V) 60 °C 53 A(500 V) 60 °C 45 A(690 V) 60 °C 35 A(380 / 400 V) 60 °C 53 A(220 / 230 / 240 V) 60 °C 53 A
Rated Operational Power AC-3 (Pe) (400 V) 22 kW(415 V) 30 kW(440 V) 30 kW(500 V) 30 kW(690 V) 30 kW(380 / 400 V) 22 kW(220 / 230 / 240 V) 15 kW
Rated Operational Power AC-3e (Pe) (415 V) 30 kW(440 V) 30 kW(500 V) 30 kW(690 V) 30 kW(380 / 400 V) 22 kW(220 / 230 / 240 V) 15 kW
Rated Short-time Withstand Current Low Voltage (Icw) at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A
Maximum Breaking Capacity cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
Maximum Electrical Switching Frequency (AC-1) 600 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour
Rated Operational Current DC-1 (Ie) (110 V) 2 Poles in Series, 40 °C 100 A(110 V) 2 Poles in Series, 60 °C 80 A(110 V) 2 Poles in Series, 70 °C 70 A(110 V) 3 Poles in Series, 40 °C 100 A(110 V) 3 Poles in Series, 60 °C 80 A(110 V) 3 Poles in Series, 70 °C 70 A(220 V) 3 Poles in Series, 40 °C 100 A(220 V) 3 Poles in Series, 60 °C 80 A(220 V) 3 Poles in Series, 70 °C 70 A(72 V) 1-Pole, 40 °C 100 A(72 V) 1-Pole, 60 °C 80 A(72 V) 1-Pole, 70 °C 70 A(72 V) 2 Poles in Series, 40 °C 100 A(72 V) 2 Poles in Series, 60 °C 80 A(72 V) 2 Poles in Series, 70 °C 70 A(72 V) 3 Poles in Series, 40 °C 100 A(72 V) 3 Poles in Series, 60 °C 80 A(72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-3 (Ie) (110 V) 2 Poles in Series, 40 °C 100 A(110 V) 2 Poles in Series, 60 °C 80 A(110 V) 2 Poles in Series, 70 °C 70 A(110 V) 3 Poles in Series, 40 °C 100 A(110 V) 3 Poles in Series, 60 °C 80 A(110 V) 3 Poles in Series, 70 °C 70 A(220 V) 3 Poles in Series, 40 °C 100 A(220 V) 3 Poles in Series, 60 °C 80 A(220 V) 3 Poles in Series, 70 °C 70 A(72 V) 1-Pole, 40 °C 100 A(72 V) 1-Pole, 60 °C 80 A(72 V) 1-Pole, 70 °C 70 A(72 V) 2 Poles in Series, 40 °C 100 A(72 V) 2 Poles in Series, 60 °C 80 A(72 V) 2 Poles in Series, 70 °C 70 A(72 V) 3 Poles in Series, 40 °C 100 A(72 V) 3 Poles in Series, 60 °C 80 A(72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-5 (Ie) (110 V) 2 Poles in Series, 40 °C 100 A(110 V) 2 Poles in Series, 60 °C 80 A(110 V) 2 Poles in Series, 70 °C 70 A(110 V) 3 Poles in Series, 40 °C 100 A(110 V) 3 Poles in Series, 60 °C 80 A(110 V) 3 Poles in Series, 70 °C 70 A(220 V) 3 Poles in Series, 40 °C 100 A(220 V) 3 Poles in Series, 60 °C 80 A(220 V) 3 Poles in Series, 70 °C 70 A(72 V) 1-Pole, 40 °C 100 A(72 V) 1-Pole, 60 °C 80 A(72 V) 1-Pole, 70 °C 70 A(72 V) 2 Poles in Series, 40 °C 100 A(72 V) 2 Poles in Series, 60 °C 80 A(72 V) 2 Poles in Series, 70 °C 70 A(72 V) 3 Poles in Series, 40 °C 100 A(72 V) 3 Poles in Series, 60 °C 80 A(72 V) 3 Poles in Series, 70 °C 70 A
Rated Insulation Voltage (Ui) acc. to IEC 60947-4-1 690 Vacc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Maximum Mechanical Switching Frequency 3600 cycles per hour
Rated Control Circuit Voltage (Uc) 50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V
Coil Consumption Average Holding Value 50 / 60 Hz 4 V·AAverage Holding Value 50 Hz 4 V·AAverage Holding Value 60 Hz 4 V·AAverage Holding Value DC 2 WAverage Holding Value, from Warm State 2 W
Operate Time Between Coil De-energization and NC Contact Closing 19 ... 105 msBetween Coil De-energization and NO Contact Opening 17 ... 100 msBetween Coil Energization and NC Contact Opening 38 ... 95 msBetween Coil Energization and NO Contact Closing 42 ... 100 ms
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied) 2 x M4 or 2 x M6 screws placed diagonally
Connecting Capacity Main Circuit Flexible with Ferrule 1/2x 4 ... 35 mm²Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²Rigid Stranded 1/2x 6 ... 35 mm²
Connecting Capacity Control Circuit Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length Control Circuit 10 mmMain Circuit 16 mm
Degree of Protection acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type Screw Terminals

Technical UL/CSA
Item Value
Maximum Operating Voltage UL/CSA Main Circuit 600 V
General Use Rating UL/CSA (600 V AC) 80 A
Horsepower Rating UL/CSA (120 V AC) Single Phase 3 hp(200 ... 208 V AC) Three Phase 15 hp(220 ... 240 V AC) Three Phase 20 hp(240 V AC) Single Phase 10 hp(440 ... 480 V AC) Three Phase 40 hp(550 ... 600 V AC) Three Phase 50 hp
Connecting Capacity Main Circuit UL/CSA Rigid Stranded 1/2x 10-2 AWG
Connecting Capacity Control Circuit UL/CSA Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA Control Circuit 11 in·lbMain Circuit 35 in·lb

Environmental
Item Value
Ambient Air Temperature Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C
Climatic Withstand Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible Without Derating 3000 m
Resistance to Vibrations acc. to IEC 60068-2-6 5 ... 300 Hz 3 g closed position / 3 g open position
Resistance to Shock acc. to IEC 60068-2-27 Closed, Shock Direction: A 25 gClosed, Shock Direction: B1 25 gClosed, Shock Direction: B2 15 gClosed, Shock Direction: C1 25 gClosed, Shock Direction: C2 25 gOpen, Shock Direction: B1 5 g
RoHS Status Following EU Directive 2011/65/EU

Classifications
Item Value
Object Classification Code Q
ETIM 4 EC000066 - Magnet contactor, AC-switching
ETIM 5 EC000066 - Magnet contactor, AC-switching
eClass V11.0 : 27371003
IDEA Granular Category Code (IGCC) 4758 >> Iec Contactors
E-Number (Finland) 3707014
E-Number (Sweden) 3210037
