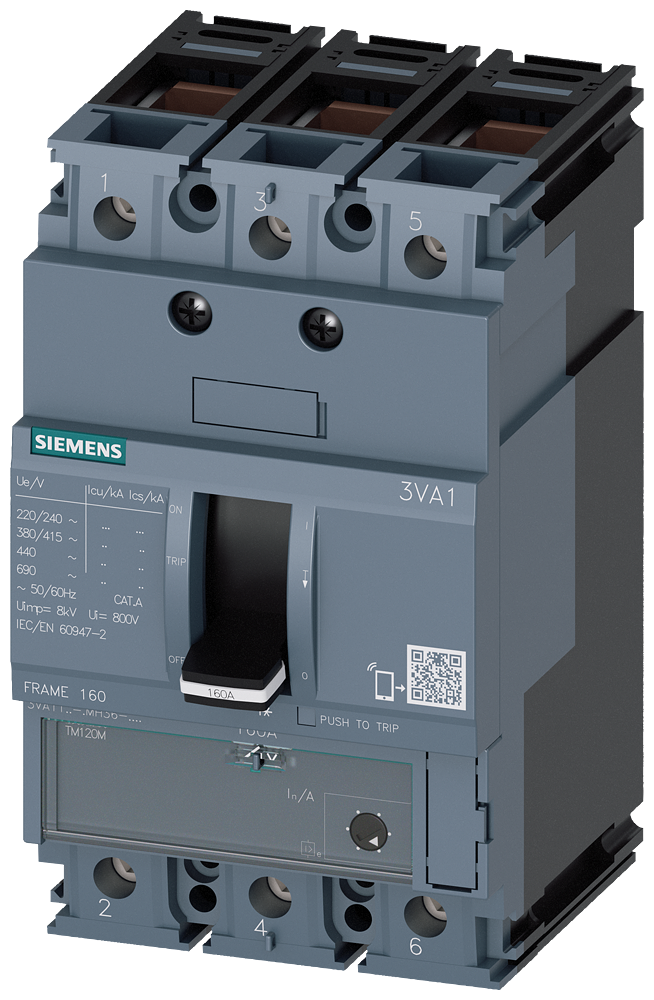

3VA1163-5MH36-0AA0 - BRKR 3VA11 3P 63A 55KA MCP HI BOX

3VA1163-5MH36-0AA0 - BRKR 3VA11 3P 63A 55KA MCP HI BOX

by Siemens
$206.06 - $206.06
$206.06
$206.06 - $206.06
$206.06

SIEMENS LOW VOLTAGE 3VA IEC MOTOR CIRCUIT PROTECTOR WITH THERMAL - MAGNETIC TRIP UNIT. 3VA11 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 63A 3-POLE Icu: (10KAIC AT 690V) (55KAIC AT 415V). HIGH RANGE TM120M TRIP UNIT WITH ADJUSTABLE Ii. SPECIAL FEATURES: CONNECTION WITH BOX TERMINAL / STEEL WRAP AROUND LUG. DIMENSIONS (W x H x D) IN: 3 x 5.1 x 3.5.



Specifications
Item Value
Number of poles 3
Country of Origin CZ
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 63 A
With switched-off indicator false
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional false
Suitable for DIN rail (top hat rail) mounting false
Adjustment range undelayed short-circuit release 440 A
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Type of electrical connection of main circuit Frame clamp
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 55 kA

SIRIUS Circuit breaker S00 / S0
