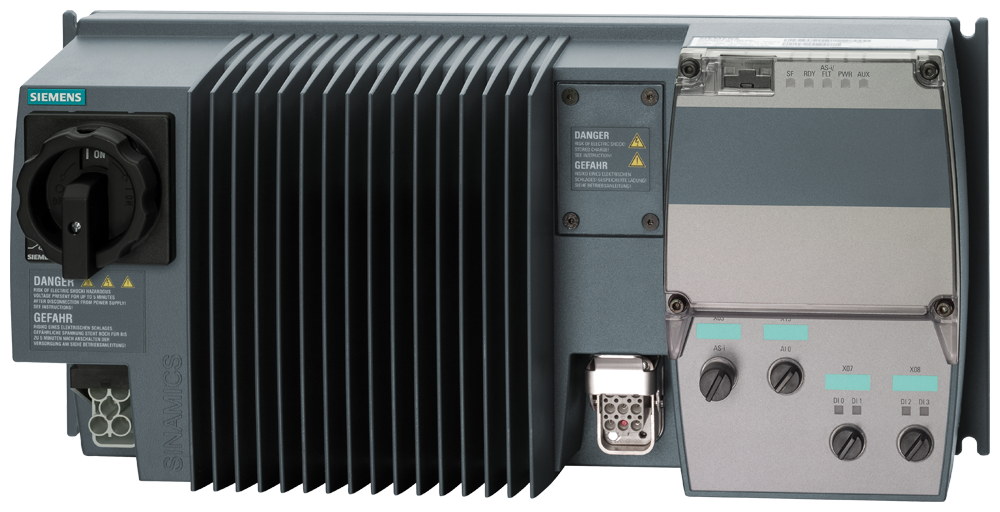

6SL35111PE230AM0 - SINAMICS G110D-IP65-FSA-A-ASI-REP 3, 0KW
by Siemens
Original price
$1,695.31
-
Original price
$1,695.31
Original price
$1,695.31
$1,695.31
-
$1,695.31
Current price
$1,695.31
SINAMICS g110d AC-drive, with repair switch with built in cl. a filter with bult in braking chopper with as-interface bus interface 3AC380-500v +10/-10% 47-63HZ output high overload 3,0KW for 200% 3s,150% 60s,100% 300s ambient temp -10 to +40 deg c 210 x 450 x 145 (hxwxd), fsa protection IP65 without operator panel
| Item | Value |
|---|---|
| Depth | 145 mm |
| Width | 445 mm |
| Height | 210 mm |
| Mains voltage | 380 V |
| With PC connection | true |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Number of digital inputs | 4 |
| Country of Origin | GB |
| Max. output frequency | 650 Hz |
| Number of analogue inputs | 1 |
| With optical interface | true |
| Number of HW-interfaces USB | 1 |
| Type of converter | U converter |
| Degree of protection (IP) | IP65 |
| Nominal output current I2N | 7.7 A |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Supporting protocol for ASI | true |
| Supporting protocol for CAN | false |
| Supporting protocol for KNX | false |
| Supporting protocol for LON | false |
| 4-quadrant operation possible | true |
| Number of HW-interfaces parallel | 0 |
| Integrated breaking resistance | true |
| Number of HW-interfaces serial TTY | 0 |
| Supporting protocol for MODBUS | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFINET CBA | false |
| Application in industrial area permitted | true |
| Number of HW-interfaces industrial Ethernet | 0 |
| Relative symmetric net frequency tolerance | 5 % |
| Relative symmetric net voltage tolerance | -10 % |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for Foundation Fieldbus | false |
| Max. output at linear load at rated output voltage | 3 kW |
| Supporting protocol for AS-Interface Safety at Work | false |
| Application in domestic- and commercial area permitted | false |
