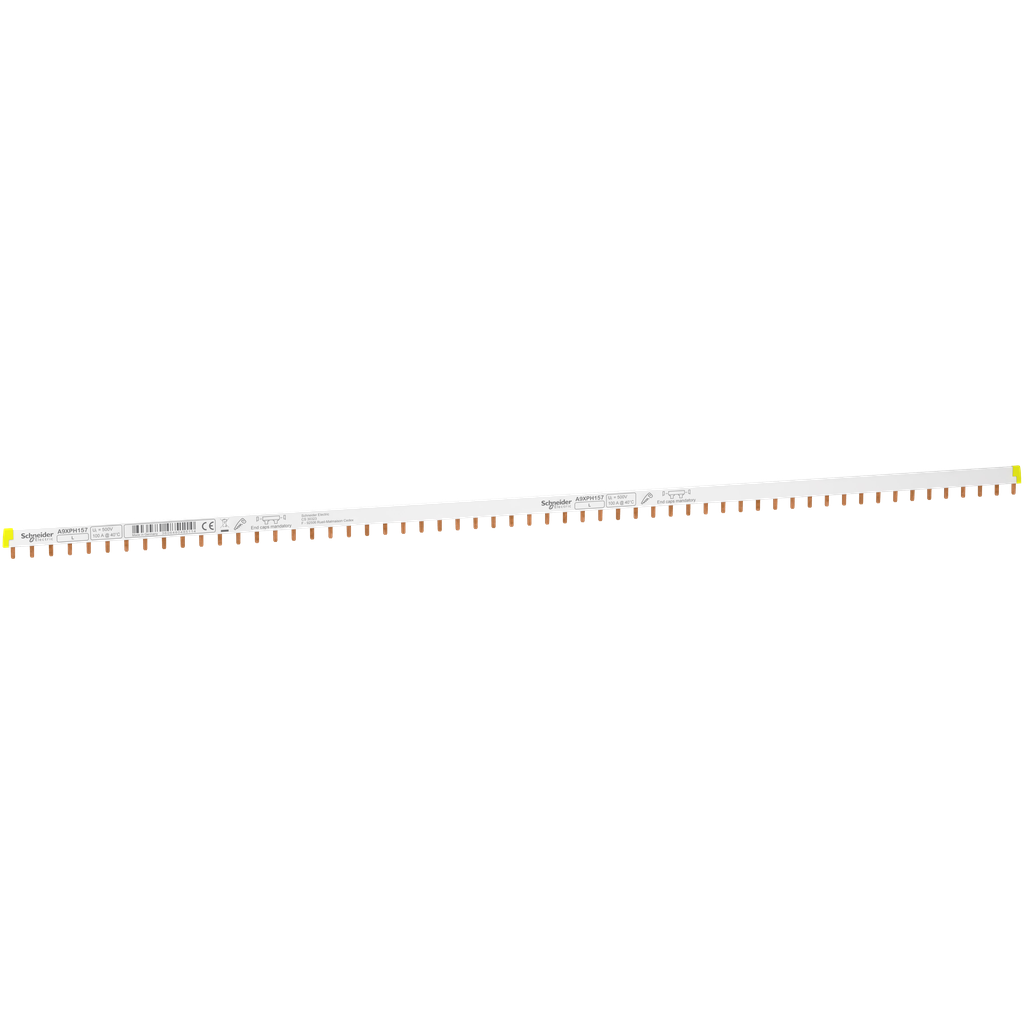

A9XPH157 - Acti9 - comb busbar - 1L - 18 mm pitch - 57 modules - 100A

A9XPH157 - Acti9 - comb busbar - 1L - 18 mm pitch - 57 modules - 100A

by Schneider Electric
$8,094.30 - $8,094.30
$8,094.30
$8,094.30 - $8,094.30
$8,094.30

This Acti9 product is a cuttable horizontal comb busbar 57 modules for Acti9 C60. It is dedicated to 1L installations. The type is L1 (Line). It is a set of 1 device. It is suitable for 57 devices (1P). The length is 1000mm.The total number of modules of 18mm is 57. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 2. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is anthracite grey RAL7016. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
