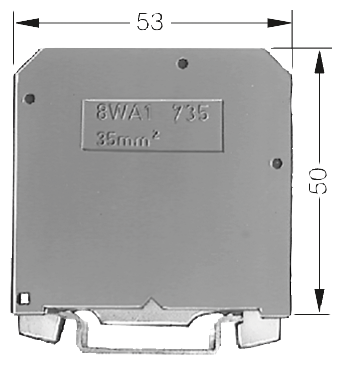

8WA1011-1PM00 - TERM BLOCK, SCREW, GND & GND-NEUTRAL, 35
by Siemens
Original price
$13.47
-
Original price
$13.47
Original price
$13.47
$13.47
-
$13.47
Current price
$13.47
TERM BLOCK,SCREW,GND & GND-NEUTRAL,35 Terminal Block,Screw Connection,Ground & Ground-neutral,Terminal Size 35,Green/Yellow,Ground-neutral up to 125 A, UL File E80027 inVol. 1 Sec. 11
Item | Value |
---|---|
Number of levels | 2 |
Country of Origin | DE |
Colour | Green/yellow |
PEN function possible | true |
Closing plate required | false |
Operation temperature | -25 °C |
Number of clamp positions per level | 1 |
Material insulation body | Thermoplastic |
Mounting method | DIN rail (top hat rail) 35 mm |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Connectable conductor cross section solid-core | 35 mm² |
Connectable conductor cross section multi-wired | 35 mm² |
Inflammability class of insulation material acc. with UL94 | V2 |
Connectable conductor cross section fine-strand with cable end sleeve | 35 mm² |
Connectable conductor cross section fine-strand without cable end sleeve | 35 mm² |
