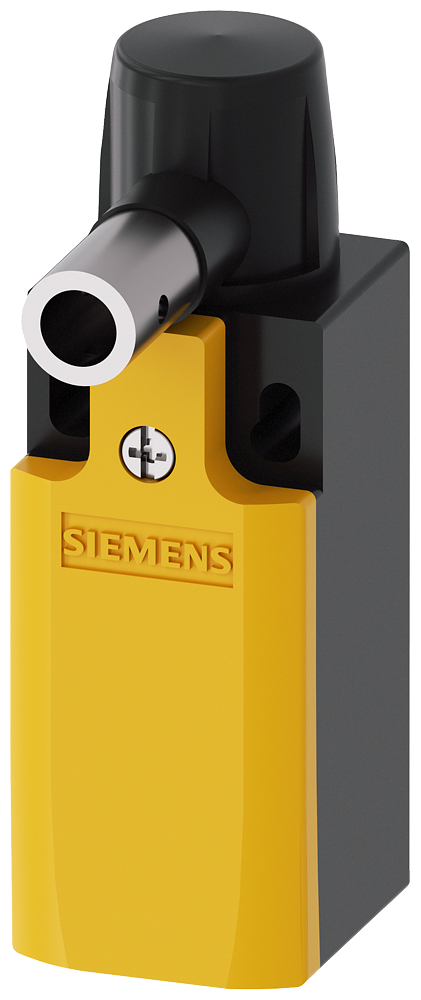

3SE5232-0LU21 - HINGESW, HOLLOWSHAFT, 15°SWITCHING, 1NO+2NC
by Siemens
Original price
$43.00
-
Original price
$43.00
Original price
$43.00
$43.00
-
$43.00
Current price
$43.00
Hinge switch Plastic enclosure, 31 mm according to EN 50047 Device connection 1 x (M20 x 1.5) Snap-action contacts 2 NC/1 NO integrated, with hollow shaft Diameter = 8 mm Actuating angle 10
| Item | Value |
|---|---|
| Width sensor | 31 mm |
| Country of Origin | DE |
| Forced opening | true |
| Coating housing | Other |
| Length of sensor | 92 mm |
| Type of interface | None |
| Height of sensor | 52.8 mm |
| Material housing | Plastic |
| With status indication | false |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 12 |
| Construction type housing | Cuboid |
| Suitable for safety functions | true |
| Type of control element | Hollow shaft |
| Number of safety auxiliary contacts | 2 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 24 V | 6 A |
| Rated operation current Ie at DC-13, 24 V | 3 A |
| Type of switching contact | Quick-break switch |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 2 |
| Type of interface for safety communication | None |
| Rated operation current Ie at DC-13, 125 V | 0.55 A |
| Type of electric connection | Cable entry metrical |
