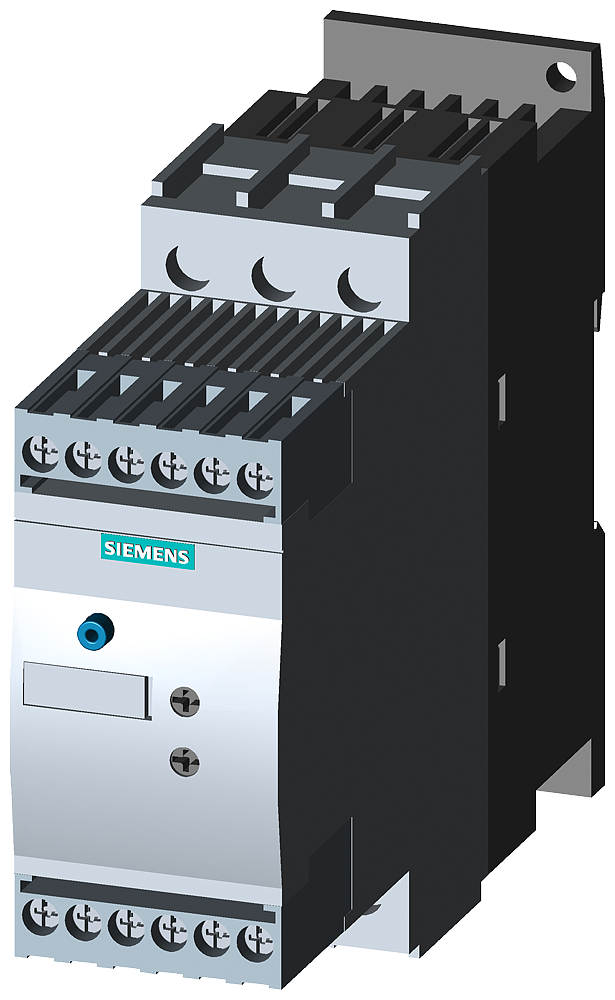

3RW3026-1BB04 - SOFTSTART, 23A, 5/5/15HP, 24V, 480V, SCREW
by Siemens
Original price
$427.49
-
Original price
$427.49
Original price
$427.49
$427.49
-
$427.49
Current price
$427.49
SIRIUS soft starter s0 25 a, 11 KW/400 V, 40 ¦c 200-480 V AC, 24 V AC/DC screw terminals
Item | Value |
---|---|
Country of Origin | CZ |
With display | false |
Release class | Other |
Internal bypass | true |
Torque control | false |
Function | Single direction |
Degree of protection (IP) | IP20 |
Rated operating voltage Ue | 200 V |
Voltage type for actuating | AC/DC |
Rated control supply voltage Us at DC | 24 V |
Integrated motor overload protection | false |
Rated control supply voltage Us at AC 50HZ | 24 V |
Rated control supply voltage Us at AC 60HZ | 24 V |
Rated operation current Ie at 40 °C Tu | 25 A |
Rated power three-phase motor, inline, at 400 V | 11 kW |
Rated power three-phase motor, inline, at 230 V | 5.5 kW |
Rated surrounding temperature without derating | 40 °C |
