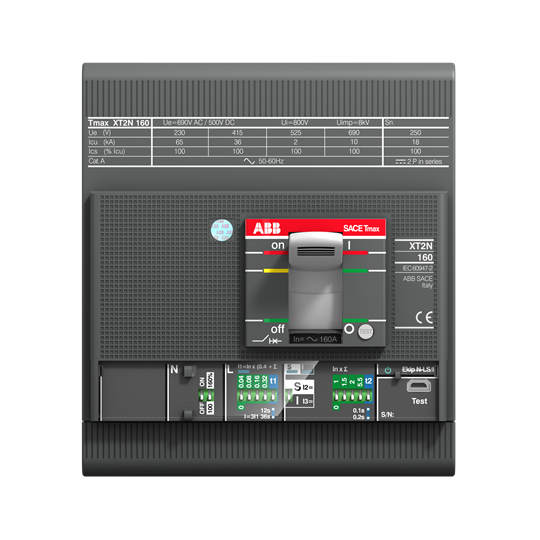

1SDA067095R1 - XT2N 160 Ekip LS/I In=160A 4pFF InN=100%
by ABB
Original price
$479.27
-
Original price
$479.27
Original price
$479.27
$479.27
-
$479.27
Current price
$479.27
C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 160 A FULLY RATED NEUTRAL
Item | Value |
---|---|
ABB EcoSolutions | Yes |
Item | Value |
---|---|
Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 58.1 % |
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
End of Life Instructions | 9AKK108468A2349 |
Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Product Declaration - EPD | 9AKK108468A1897 |
Item | Value |
---|---|
Environmental Information | 9AKK107991A8215 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | 060aee7b-5a26-4fae-8f26-8f1c6617efea Italy (IT) |
Simplified SCIP | 9eedccba-1741-4fb3-832c-b25430f4097a Portugal (PT)ad4eaa00-9906-4f87-84aa-ca6c3f7abc71 Germany (DE)2e034345-ac69-4ed8-8266-e2290d415876 Poland (PL)0c6cb474-c50a-407d-bdd8-7ceb19763ad5 Sweden (SE)2d2833d1-a110-4c1d-8f50-c9893d52e736 Germany (DE)c82ad2c3-f14b-4d68-8b20-9d8e2366b8a5 France (FR)b170c593-db9c-4e08-a9ba-41a71a24ca03 Netherlands (NL)638cccd1-810b-480e-9886-78dfc6d7c333 Spain (ES)fb7cd8d4-c343-45af-a6b4-c37e3f85585e Netherlands (NL)ff541252-0325-4734-955b-630a690a053d Bulgaria (BG)e05a9fa1-1297-44ed-8e6b-72d556defa55 Sweden (SE)191bf99a-6193-4124-99c5-db1c281d4e3d Poland (PL)58371b36-a778-4817-b9ca-4f8b42bbc516 France (FR)22dc3bb0-090d-41d0-9027-c23085688625 Norway (NO)a926e7b1-bd09-4c30-89a0-ff1962ef4325 Finland (FI)82200646-bc7f-4dc3-a52b-aac649a9d008 Netherlands (NL)e682dd60-feee-45ed-9233-0035d9bd145c Germany (DE)14e54362-1193-4281-a740-b2bf446faf41 Denmark (DK)0b648ecd-95bf-4bc0-bf88-525b258e96c4 Germany (DE)ab2c4e17-1358-471f-b9c0-febe9be88731 Croatia (HR)43e6cd2c-a63f-4374-8e95-a0cf137bab6e Czech Republic (CZ)d4b57ea0-cf79-4670-9404-9af0e36832fc Poland (PL)e9134eed-e26d-4c09-8bd6-b74d5013184f Netherlands (NL)0296f209-3e4f-4104-a06a-47dcb425a87e Netherlands (NL)86dbb277-8032-4d4d-b348-98ddd18d920d Estonia (EE)a2f1f056-6fff-4ba1-88df-47543602eb5e Greece (GR) |
Item | Value |
---|---|
Order Code US and Canada | XT2NE4160EFF000XXX |
E-Number (Finland) | 3640567 |
E-Number (Sweden) | 3182035 |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 120 mm |
Product Net Height | 130 mm |
Product Net Depth / Length | 82.5 mm |
Product Net Weight | 1.6 kg |
Item | Value |
---|---|
Circuit Breaker Type to be Associated | Power Distribution |
Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
Current Type | AC |
Electrical Durability | 120 cycles per hour8000 cycle |
Mechanical Durability | 240 cycles per hour25000 cycle |
Number of Poles | 4 |
Opening Time | CB with SOR 15 msCB with UVR 15 ms |
Order Multiple | 1 piece |
Power Loss | at Rated Operating Conditions per Pole 10.8 W |
Product Main Type | SACE Tmax XT |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 160 A |
Rated Frequency (f) | 50 / 60 Hz |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA |
Rated Uninterrupted Current (Iu) | 160 A |
Recommended Screw Driver | Main Circuit M6 |
Release | Ekip LS/I |
Release Type | EL |
RoHS Date | NA |
Short-Circuit Performance Level | N |
Standards | IEC |
Sub-type | XT2 |
Terminal Connection Type | Front |
Terminal Type | Bolt |
Tightening Torque | 6 N·m |
Version | F |
CAD Dimensional Drawing | 1SDH002230A1002 |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
