1SDA067428R1 - XT1N 160 TMD 160-1600 4p F F InN=100%
by ABB
Original price
$280.89
-
Original price
$280.89
Original price
$280.89
$280.89
-
$280.89
Current price
$280.89

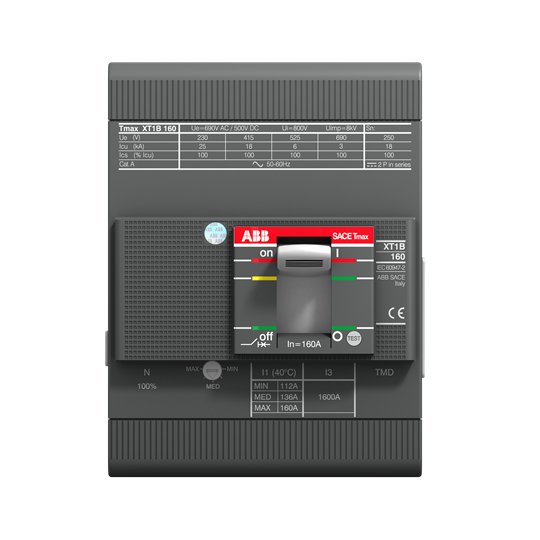

C.BREAKER TMAX XT1N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 160-1600 A FULLY RATED NEUTRAL
Item | Value |
---|---|
ABB EcoSolutions | Yes |
Item | Value |
---|---|
Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 60.9 % |
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
End of Life Instructions | 9AKK108468A2347 |
Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Product Declaration - EPD | 9AKK108468A1890 |
Item | Value |
---|---|
Environmental Information | 9AKK107991A8215 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | 0ac951c1-9b40-4f47-a751-2ab056ffe1d8 Italy (IT) |
Simplified SCIP | 3d1957e6-6fff-4ac5-a4de-caa94ab5c364 France (FR)585d169a-087c-4da7-ad22-14f7211e98a1 Netherlands (NL)ff4fab3b-79ba-48cf-8ed4-5efe459324fa Estonia (EE)f70a208d-8500-4b87-8e80-56eb4dcb62f2 Greece (GR)ab874939-835a-44db-8d0f-0ae656d2b42c Portugal (PT)3d1957e6-6fff-4ac5-a4de-caa94ab5c364 France (FR)bd36d84d-14a0-4614-8240-3ca69ef29c39 Sweden (SE)9be1dbef-ca32-4fe8-b574-89b5a88b48ee Germany (DE)de6316e9-bdb1-43e5-b16d-b95b72c5dfb4 Germany (DE)602c2f91-c382-4023-97d1-6af1a6d6081a France (FR)8cba98fa-d5d2-4ec5-bf3c-1960563892a0 Netherlands (NL)bd36d84d-14a0-4614-8240-3ca69ef29c39 Sweden (SE)9be1dbef-ca32-4fe8-b574-89b5a88b48ee Germany (DE)de6316e9-bdb1-43e5-b16d-b95b72c5dfb4 Germany (DE)602c2f91-c382-4023-97d1-6af1a6d6081a France (FR)8cba98fa-d5d2-4ec5-bf3c-1960563892a0 Netherlands (NL)17496149-365a-445d-af68-54e4bc6db1db Spain (ES)14cd69a0-0aec-4cca-80b5-96c95c8af3e4 Netherlands (NL)e3656c3b-bce5-47e5-afeb-7f009b696b0a Bulgaria (BG)de206646-cbea-472d-bc5e-38f523d75152 Sweden (SE)14cd69a0-0aec-4cca-80b5-96c95c8af3e4 Netherlands (NL)cce5ff42-1b35-421b-84db-020aa9af0a7a Poland (PL)ff4fab3b-79ba-48cf-8ed4-5efe459324fa Estonia (EE)f70a208d-8500-4b87-8e80-56eb4dcb62f2 Greece (GR)ab874939-835a-44db-8d0f-0ae656d2b42c Portugal (PT)e3656c3b-bce5-47e5-afeb-7f009b696b0a Bulgaria (BG)de206646-cbea-472d-bc5e-38f523d75152 Sweden (SE)cce5ff42-1b35-421b-84db-020aa9af0a7a Poland (PL)17496149-365a-445d-af68-54e4bc6db1db Spain (ES)a8e7d90f-4315-4279-a905-8664948cfaff Poland (PL)4dc6cdf8-32d7-49b1-a117-c0ce3ad2f633 Norway (NO)c3b8ec46-1389-4df7-8ed0-faeafd3b6c2d Finland (FI)17032ab3-d170-46a5-983e-858cc49ab98d Netherlands (NL)a4916536-3f0a-4c32-979a-0ef6d86b33ea Germany (DE)7f380bd4-62bf-43fd-b963-40441f5c8867 Denmark (DK)29282873-f42c-494c-a6f0-215e2e76a9f8 Germany (DE)31575187-3d16-43b1-ad84-85ff5a7ee577 Croatia (HR)99bddbbc-3e48-4a6d-b5b0-61c3be192e43 Czech Republic (CZ)3024527b-6e7a-4d6a-a536-159275b759d0 Poland (PL)83801f67-afd3-4187-897a-3539e975ecba Netherlands (NL)585d169a-087c-4da7-ad22-14f7211e98a1 Netherlands (NL)a8e7d90f-4315-4279-a905-8664948cfaff Poland (PL)4dc6cdf8-32d7-49b1-a117-c0ce3ad2f633 Norway (NO)c3b8ec46-1389-4df7-8ed0-faeafd3b6c2d Finland (FI)17032ab3-d170-46a5-983e-858cc49ab98d Netherlands (NL)a4916536-3f0a-4c32-979a-0ef6d86b33ea Germany (DE)7f380bd4-62bf-43fd-b963-40441f5c8867 Denmark (DK)29282873-f42c-494c-a6f0-215e2e76a9f8 Germany (DE)31575187-3d16-43b1-ad84-85ff5a7ee577 Croatia (HR)99bddbbc-3e48-4a6d-b5b0-61c3be192e43 Czech Republic (CZ)3024527b-6e7a-4d6a-a536-159275b759d0 Poland (PL)83801f67-afd3-4187-897a-3539e975ecba Netherlands (NL) |
Item | Value |
---|---|
Order Code US and Canada | XT1NE4160AFF000XXX |
E-Number (Sweden) | 3182447 |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 101.6 mm |
Product Net Height | 130 mm |
Product Net Depth / Length | 70 mm |
Product Net Weight | 1.4 kg |
Item | Value |
---|---|
Circuit Breaker Type to be Associated | Power Distribution |
Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
Current Type | AC/DC |
Electrical Durability | 120 cycles per hour8000 cycle |
Mechanical Durability | 240 cycles per hour25000 cycle |
Number of Poles | 4 |
Opening Time | CB with SOR 15 msCB with UVR 15 ms |
Order Multiple | 1 piece |
Power Loss | at Rated Operating Conditions per Pole 15 W |
Product Main Type | SACE Tmax XT |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 160 A |
Rated Frequency (f) | 50 / 60 Hz |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Instantaneous Short-Circuit Current Setting (Ii) | 1600 A |
Rated Insulation Voltage (Ui) | 800 V |
Rated Operational Voltage | 690 V AC500 V DC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 18 kA(500 V AC) 15 kA(525 V AC) 11 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 22 kA(690 V AC) 6 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA |
Rated Uninterrupted Current (Iu) | 160 A |
Recommended Screw Driver | Main Circuit M6 |
Release | TMD |
Release Type | TM |
RoHS Date | NA |
Setting Range | 112...160 A |
Short-Circuit Performance Level | N |
Standards | IEC |
Sub-type | XT1 |
Terminal Connection Type | Front |
Terminal Type | Bolt |
Tightening Torque | 6 N·m |
Version | F |
CAD Dimensional Drawing | 1SDH001295R0080 |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
