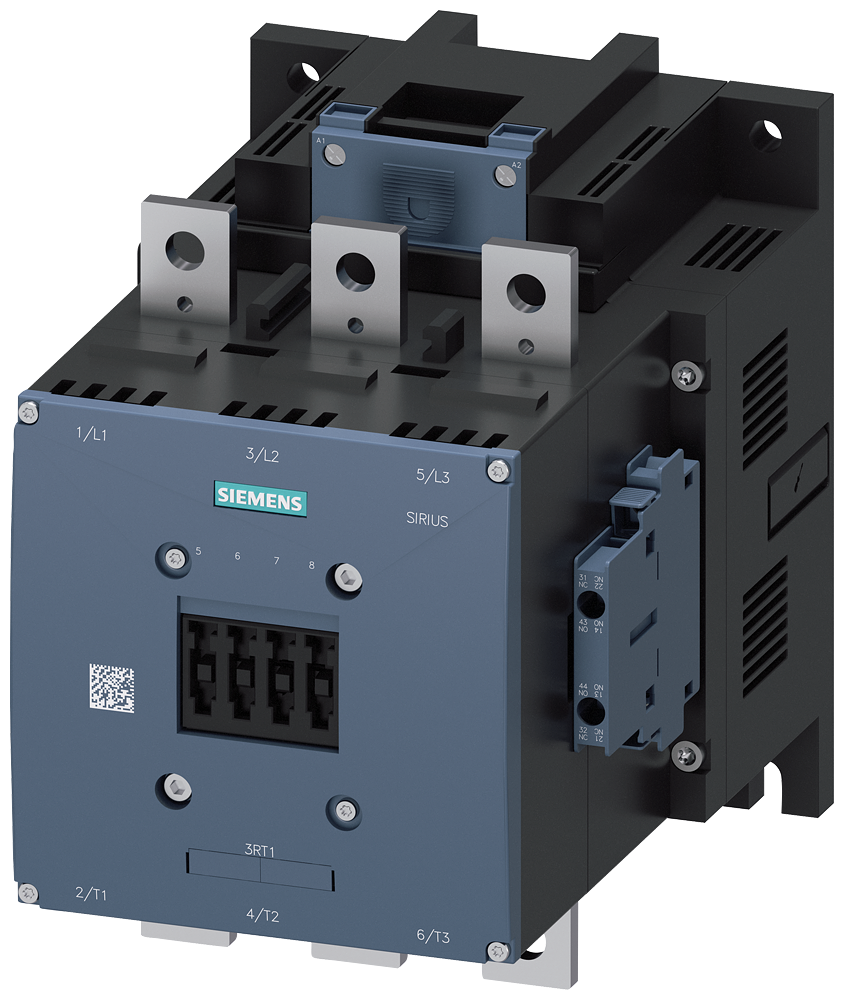

3RT1476-6AM36 - CONTACTOR RES S12 690A 200-220VUC 3P BAR
by Siemens
Original price
$1,650.43
-
Original price
$1,650.43
Original price
$1,650.43
$1,650.43
-
$1,650.43
Current price
$1,650.43
DRIVE: CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S12 AUXILIARY CONTACTS 2NO+2NC AC/DC OPERATION 200-220V UC CONTACTOR, 690A/AC-1
| Item | Value |
|---|---|
| Country of Origin | DE |
| Type of actuation | AC/DC |
| Connection type | Connecting rail |
| Number of main contacts as opener | 0 |
| suitable for series installation | Yes |
| Number of auxiliary contacts as opener | 2 |
| Number of auxiliary contacts as shutter | 2 |
| Max. rated DC voltage for controls | 220 volt |
| Number of making contacts and main contacts | 3 |
| min. rated control voltage Us with DC | 200 volt |
| Max. rated AC voltage for controls, 50 Hz | 220 volt |
| max. rated AC voltage for controls (60 Hz) | 220 volt |
| min. rated control voltage Us with AC 50 Hz | 200 volt |
| Power loss, static, current-independent [Pls] | 10 watt |
| Rated operating current Ie with AC-1, 400 V | 650 ampere |
| Rated operating current Ie with AC-3, 400 V | 170 ampere |
| Power loss per pole, current-dependent [PlIp] | 61.9 watt |
| Rated current [In] for the power loss specification | 170 ampere |
