3LD2418-7UK01 - DISC SW 250A DOOR ROT HDL 4HOLE R/Y 3P

3LD2418-7UK01 - DISC SW 250A DOOR ROT HDL 4HOLE R/Y 3P

by Siemens
$1,026.32 - $1,026.32
$1,026.32
$1,026.32 - $1,026.32
$1,026.32

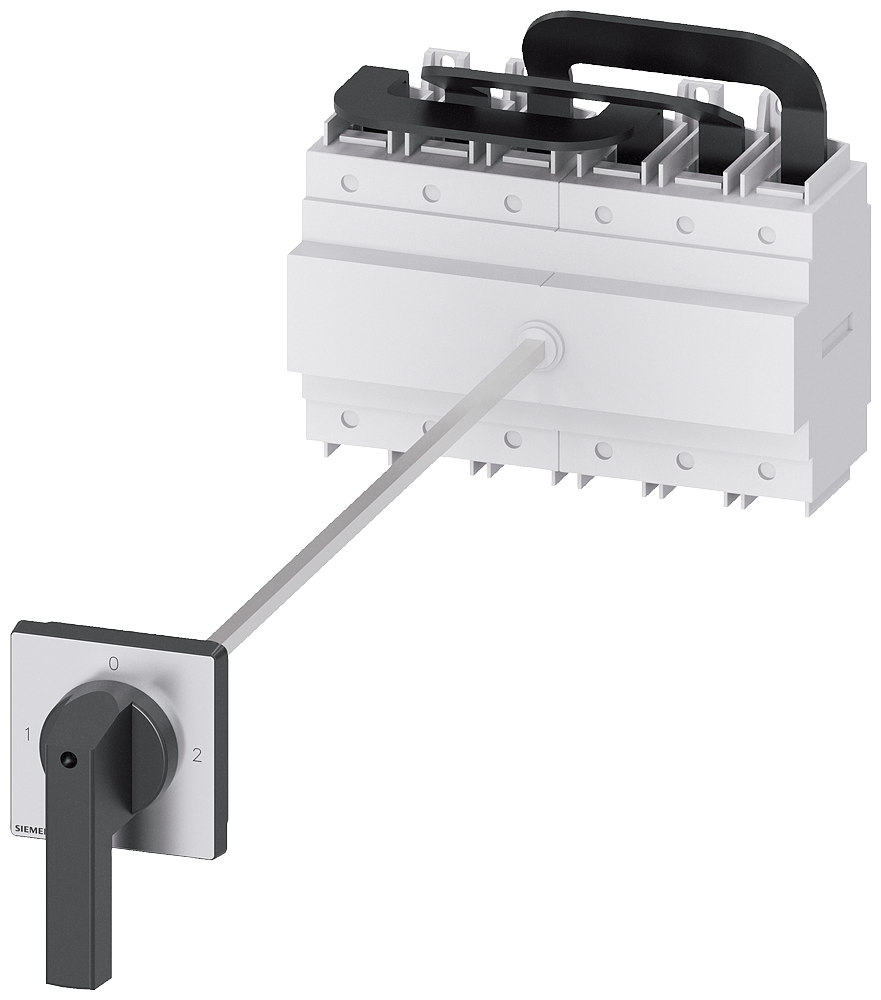

SENTRON, Switch disconnector 3LD, change-over switch, 3-pole, Iu = 250 A, Operating power / at AC-23 A at 400 V: 132 kW, floor mounting with door coupling, knob-operated mechanism, black, 4-hole mounting of the handle



Specifications
Item Value
Country of Origin DE
Number of poles 3
Interlockable true
Number of switches 1
Motor drive optional false
Version as main switch true
Motor drive integrated false
Version as safety switch true
Voltage release optional false
Degree of protection (NEMA) Other
Rated permanent current Iu 250.0 A
Suitable for ground mounting true
Version as reversing switch false
Max. rated operation voltage Ue AC 690 V
Suitable for front mounting 4-hole true
Suitable for front mounting centre false
Degree of protection (IP), front side IP65
Rated operation power at AC-3, 400 V 110 kW
Rated short-time withstand current lcw 4 kA
Rated operation power at AC-23, 400 V 132 kW
Version as maintenance-/service switch true
Rated permanent current at AC-21, 400 V 250 A
Rated permanent current at AC-23, 400 V 224 A
Version as emergency stop installation false
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
