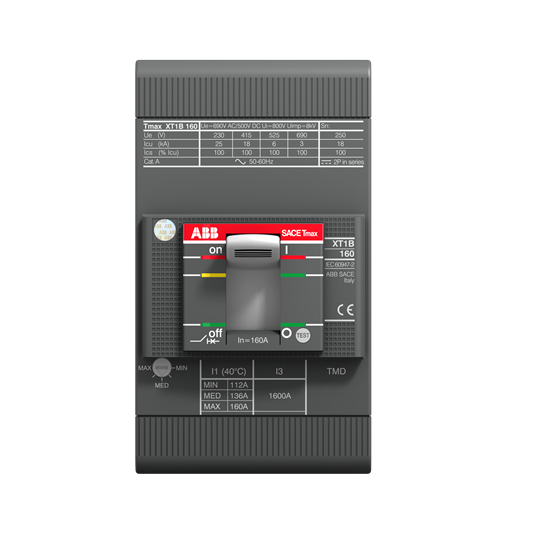

1SDA067417R1 - XT1N 160 TMD 125-1250 3p F F

1SDA067417R1 - XT1N 160 TMD 125-1250 3p F F

by ABB
$181.02 - $181.02
$181.02
$181.02 - $181.02
$181.02

C.BREAKER TMAX XT1N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 125-1250 A



ABB EcoSolutions
Item Value
ABB EcoSolutions Yes

Circular Value
Item Value
Circular Design Principles Recyclability Rate Design for Closing Resource Loops - Standard EN45555 - 60.9 %
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
End of Life Instructions 9AKK108468A2347
Group Waste to Landfill Target UL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA 9AKK108467A8326

Eco Transparency
Item Value
Environmental Product Declaration - EPD 9AKK108468A1890

Environmental
Item Value
Environmental Information 9AKK107991A8215 9AKK108467A6707
REACH Declaration 9AKK108466A1425
RoHS Information 9AKK108466A1424
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP a017b995-7677-4032-97d0-70955e42da44 Italy (IT)
Simplified SCIP 1016c0d9-6b2f-4541-9731-ae5e514b612c Poland (PL)edbc41b2-977e-4e62-bf57-c577ff37b752 Norway (NO)8fc64a28-bf02-4bab-816f-7f1ea8cfd665 Finland (FI)43a45886-4e27-4a3e-ac1b-8b1e0104ca73 Netherlands (NL)4fcbf66a-4b6b-46af-ac6f-59cb9aa340de Germany (DE)9e0ae2d2-e0b9-4228-be20-f5c865206c7c Denmark (DK)20885196-3e38-4106-9f6c-8d28627c13b2 Germany (DE)343aaf43-b98c-4a34-9ed6-a9b69238da5b Germany (DE)2c159a70-312e-4644-b3d1-94e378e10a86 Germany (DE)809033fa-336d-4222-bc6d-effdad3dc5cf France (FR)2aeb223c-861a-44a1-a400-158a4cdeb813 Croatia (HR)22571705-23bb-4a04-b01e-c24dd2ed0c42 Czech Republic (CZ)b2a78f6a-a79e-40fa-a74c-1288ca44ffc3 Poland (PL)1237e344-5721-4e92-ba26-495240e92ab2 Netherlands (NL)afa7cc49-fb95-4dcf-b06f-b5ca40347ffd Netherlands (NL)a80945a7-a1d7-4591-a902-0d7f35f16fdf Estonia (EE)e85dc33f-4046-4d61-a81c-b669d5302bcc Greece (GR)996e3faf-cb89-42ac-936a-470cbacce407 Portugal (PT)343aaf43-b98c-4a34-9ed6-a9b69238da5b Germany (DE)2c159a70-312e-4644-b3d1-94e378e10a86 Germany (DE)809033fa-336d-4222-bc6d-effdad3dc5cf France (FR)0444e024-95d5-44cc-bb85-a31adfd5c119 Netherlands (NL)ee5df21b-fa7d-489e-a92d-46638bb22341 Spain (ES)446e2120-ac60-44e4-aae9-f4f832038592 Netherlands (NL)de89bfae-43b5-4256-924a-7387070e4c4f Bulgaria (BG)8c45bbc7-0bae-4794-b9f3-2952b5b9fe76 Sweden (SE)446e2120-ac60-44e4-aae9-f4f832038592 Netherlands (NL)b24cbc91-fe23-4da5-8766-52ace4f2b836 Poland (PL)dbfc548b-8fe0-4a7b-9c71-47814e8b77cf France (FR)3155e223-d2f5-457b-ad5a-bf70d2814bc8 Sweden (SE)0444e024-95d5-44cc-bb85-a31adfd5c119 Netherlands (NL)ee5df21b-fa7d-489e-a92d-46638bb22341 Spain (ES)1016c0d9-6b2f-4541-9731-ae5e514b612c Poland (PL)edbc41b2-977e-4e62-bf57-c577ff37b752 Norway (NO)8c45bbc7-0bae-4794-b9f3-2952b5b9fe76 Sweden (SE)b24cbc91-fe23-4da5-8766-52ace4f2b836 Poland (PL)dbfc548b-8fe0-4a7b-9c71-47814e8b77cf France (FR)3155e223-d2f5-457b-ad5a-bf70d2814bc8 Sweden (SE)8fc64a28-bf02-4bab-816f-7f1ea8cfd665 Finland (FI)43a45886-4e27-4a3e-ac1b-8b1e0104ca73 Netherlands (NL)4fcbf66a-4b6b-46af-ac6f-59cb9aa340de Germany (DE)9e0ae2d2-e0b9-4228-be20-f5c865206c7c Denmark (DK)20885196-3e38-4106-9f6c-8d28627c13b2 Germany (DE)2aeb223c-861a-44a1-a400-158a4cdeb813 Croatia (HR)22571705-23bb-4a04-b01e-c24dd2ed0c42 Czech Republic (CZ)b2a78f6a-a79e-40fa-a74c-1288ca44ffc3 Poland (PL)1237e344-5721-4e92-ba26-495240e92ab2 Netherlands (NL)afa7cc49-fb95-4dcf-b06f-b5ca40347ffd Netherlands (NL)a80945a7-a1d7-4591-a902-0d7f35f16fdf Estonia (EE)e85dc33f-4046-4d61-a81c-b669d5302bcc Greece (GR)996e3faf-cb89-42ac-936a-470cbacce407 Portugal (PT)de89bfae-43b5-4256-924a-7387070e4c4f Bulgaria (BG)

Ordering
Item Value
E-Number (Finland) 3640520
E-Number (Sweden) 3182428
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Dimensions
Item Value
Product Net Width 76.2 mm
Product Net Height 130 mm
Product Net Depth / Length 70 mm
Product Net Weight 1.1 kg

Additional Information
Item Value
Circuit Breaker Type to be Associated Power Distribution
Connecting Capacity Main Circuit Busbar 45.5 ... 80 mm²
Current Type AC/DC
Electrical Durability 120 cycles per hour8000 cycle
Mechanical Durability 240 cycles per hour25000 cycle
Number of Poles 3
Opening Time CB with SOR 15 msCB with UVR 15 ms
Order Multiple 1 piece
Power Loss at Rated Operating Conditions per Pole 10.7 W
Product Main Type SACE Tmax XT
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Rated Current (In) 125 A
Rated Frequency (f) 50 / 60 Hz
Rated Voltage (Ur) 690 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii) 1250 A
Rated Insulation Voltage (Ui) 800 V
Rated Operational Voltage 690 V AC500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 18 kA(500 V AC) 15 kA(525 V AC) 11 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 22 kA(690 V AC) 6 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu) 160 A
Recommended Screw Driver Main Circuit M6
Release TMD
Release Type TM
RoHS Date NA
Setting Range 87.5...125 A
Short-Circuit Performance Level N
Standards IEC
Sub-type XT1
Terminal Connection Type Front
Terminal Type Bolt
Tightening Torque 6 N·m
Version F
CAD Dimensional Drawing 1SDH001295R0008

Classifications
Item Value
ETIM 9 EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code Q
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409
