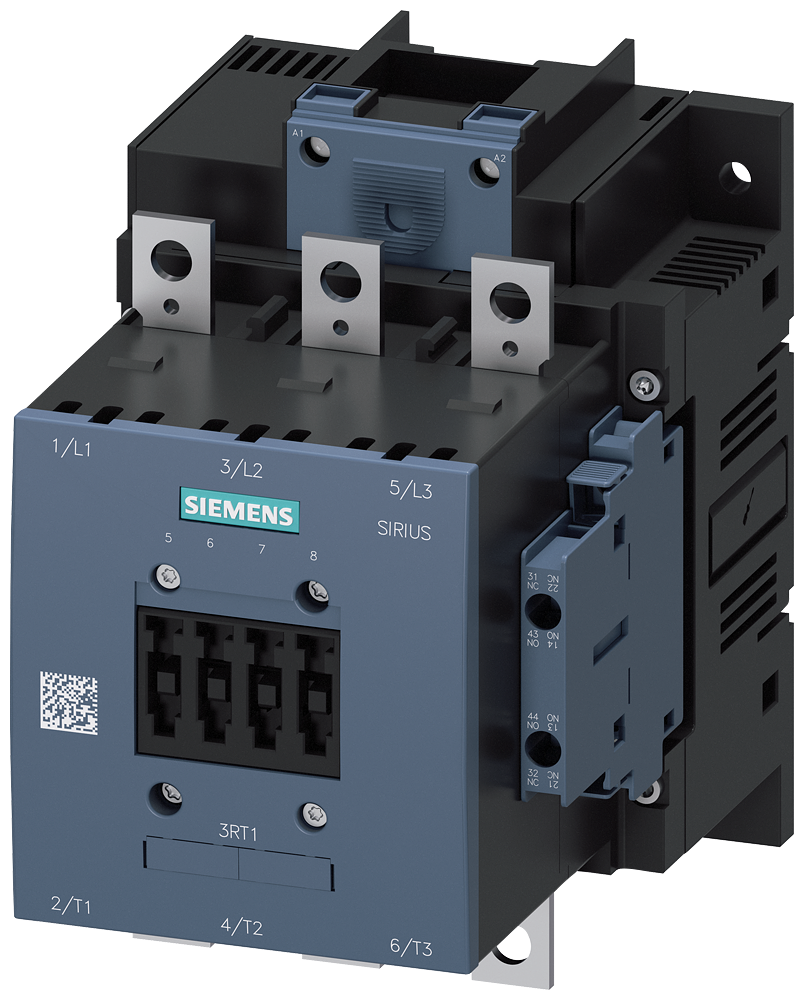

3RT1054-6AF36 - CONTACTOR S6 115A 110-127VUC 3P BAR
by Siemens
Original price
$414.66
-
Original price
$414.66
Original price
$414.66
$414.66
-
$414.66
Current price
$414.66
Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S6,115A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5
| Item | Value |
|---|---|
| Modular version | true |
| Country of Origin | DE |
| Voltage type for actuating | AC/DC |
| Rated operation power NEMA | 73.549875 kW |
| Rated operation power at AC-3, 400 V | 55 kW |
| Rated operation power at AC-4, 400 V | 55 kW |
| Rated control supply voltage Us at DC | 110 V |
| Rated operation current Ie at AC-4, 400 V | 97 A |
| Rated operation current Ie at AC-1, 400 V | 160 A |
| Rated operation current Ie at AC-3, 400 V | 115 A |
| Rated control supply voltage Us at AC 50HZ | 110 V |
| Rated control supply voltage Us at AC 60HZ | 110 V |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Type of electrical connection of main circuit | Rail connection |
