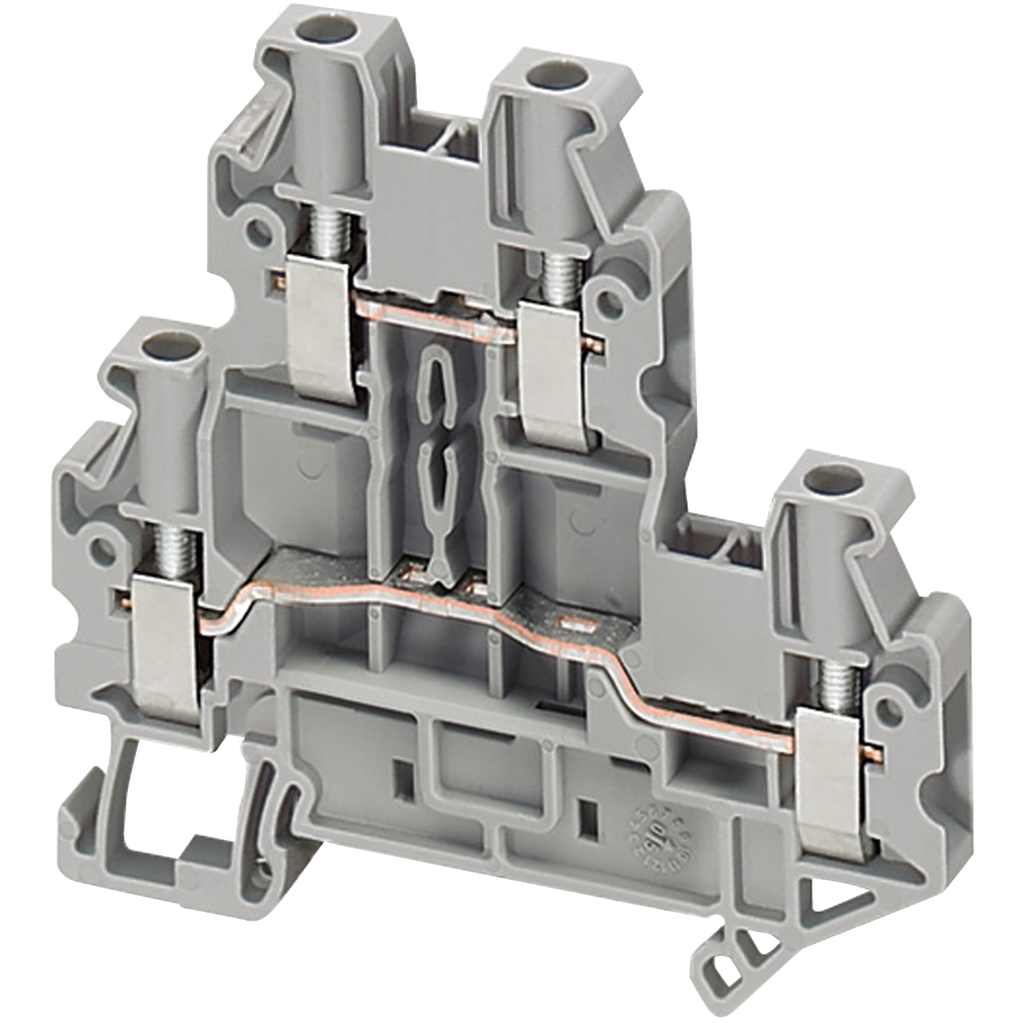

NSYTRV44D - SCREW TERMINAL, DOUBLE LEVEL, 4 POINTS, 4MM² , GREY

NSYTRV44D - SCREW TERMINAL, DOUBLE LEVEL, 4 POINTS, 4MM² , GREY

by Schneider Electric
$9,899.33 - $9,899.33
$9,899.33
$9,899.33 - $9,899.33
$9,899.33

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 800V conforming to EN/IEC 60947-7-1 and 440V conforming to ATEX Exe II Ex II 2 GD. The rated current is 30A conforming to EN/IEC 60947-7-1, 30A conforming to CSA/cURus and 25.5A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by double-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
