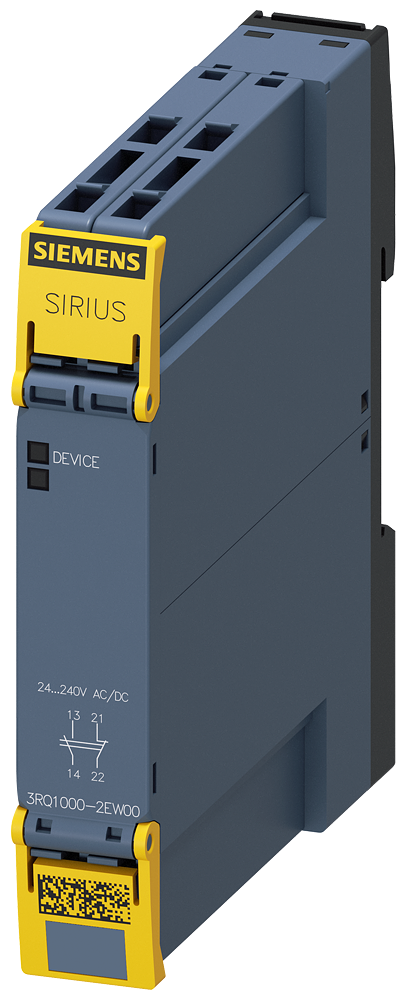

3RQ10002EW00 - COUPLING RELAY IM
by Siemens
Original price
$101.88
-
Original price
$101.88
Original price
$101.88
$101.88
-
$101.88
Current price
$101.88
Positively driven coupling relay in industrial enclosure 1 NO contact / 1 NC contact 24 V to 240 V AC/DC SIL 2 / PL c Spring-type terminals (push-in)
| Item | Value |
|---|---|
| Depth | 90 mm |
| Height | 100 mm |
| Width | 17.5 mm |
| With LED indication | true |
| Complete with socket | false |
| With detachable clamps | false |
| Drive, polarization | Polarized |
| Degree of protection (IP) | IP20 |
| Voltage type for actuating | AC/DC |
| With forced-guided contacts | true |
| Drive, switching attitude | Mono stable |
| Country of Origin | DE |
| Rated control supply voltage Us at DC | 24 V |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Rated control supply voltage Us at AC 50HZ | 24 V |
| Rated control supply voltage Us at AC 60HZ | 24 V |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Spring clamp connection |
