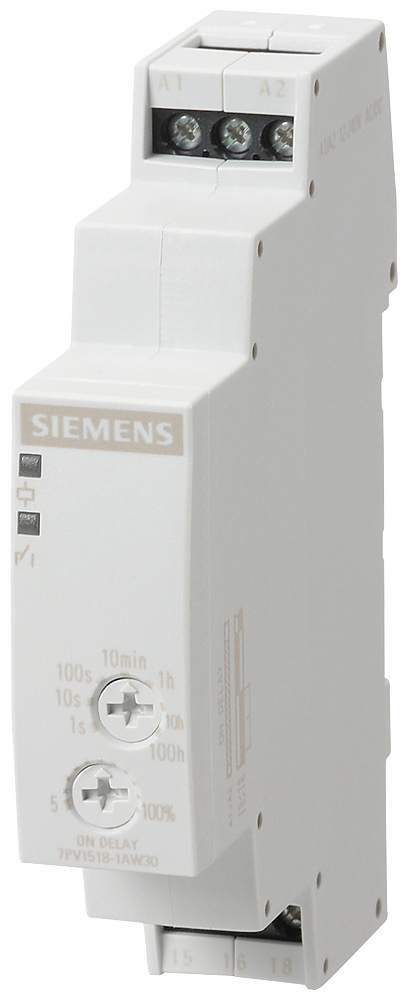

7PV1518-1AJ30 - TIME RELAY. MOUNT. ON-DELAY
by Siemens
Original price
$49.57
-
Original price
$49.57
Original price
$49.57
$49.57
-
$49.57
Current price
$49.57
Time relay. electronic. on-delay. 1 co. 7 time ranges 0.05s...100h. AC/DC 110v. 0.7...1.15xup. screw connection
Item | Value |
---|---|
Height | 90 mm |
Country of Origin | CZ |
Width | 17.5 mm |
Time range | 0.05 min |
Depth | 66.699999999 mm |
Function star-delta | false |
With plug-in socket | false |
Function pulse shaping | false |
Remote operation possible | false |
With semiconductor output | false |
Voltage type for actuating | AC/DC |
Suitable for remote control | false |
Function delay-on energization | true |
Function delay on de-energization | false |
Rated control supply voltage Us at DC | 90 V |
Pluggable on auxiliary contact block | false |
Outputs, reversible delayed/undelayed | false |
Type of electric connection | Screw connection |
Rated control supply voltage Us at AC 50HZ | 90 V |
Rated control supply voltage Us at AC 60HZ | 90 V |
Function floating contact on energization | false |
Number of outputs, delayed, change-over contact | 1 |
Function floating contact on de-energization | false |
Clock function, starting with pause, variable | false |
Clock function, starting with pulse, variable | false |
Number of outputs, delayed, normally open contact | 0 |
Number of outputs, undelayed, change-over contact | 0 |
Number of outputs, delayed, normally closed contact | 0 |
Number of outputs, undelayed, normally open contact | 0 |
Number of outputs, undelayed, normally closed contact | 0 |
Function flashing, starting with pause, fixed time | false |
Function flashing, starting with pulse, fixed time | false |
