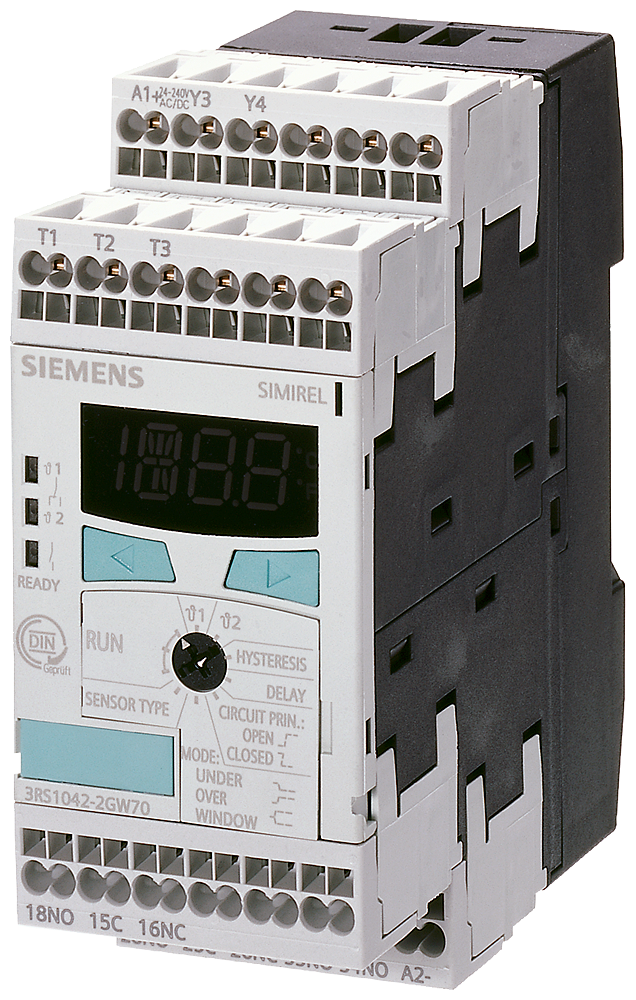

3RS1042-2GD70 - TEMPERATURE SENSOR/LIMITER

3RS1042-2GD70 - TEMPERATURE SENSOR/LIMITER

by Siemens
$375.24 - $375.24
$375.24
$375.24 - $375.24
$375.24

Temperature Monitoring Relay SIMIREL Conversion Type= Digital deg. C Number of Sensors = 2 Sensor Type = (Sel-PT100/1000;KTY83/84;NTC) Function = (Sel-Over/Under/Window Monitor) Measurinng Range = -50+750 Control Voltage = 24VUC Spring



Specifications
Item Value
Depth 91 mm
Country of Origin DE
Width 45 mm
Height 108 mm
With detachable clamps true
External reset possible true
Number of measuring circuits 1
Error registration possible true
Voltage type for actuating AC/DC
Rated control supply voltage Us at DC 24 V
Number of contacts as change-over contact 2
Number of contacts as normally open contact 1
Rated control supply voltage Us at AC 50HZ 24 V
Rated control supply voltage Us at AC 60HZ 24 V
Number of contacts as normally closed contact 0
Type of electric connection Spring clamp connection
