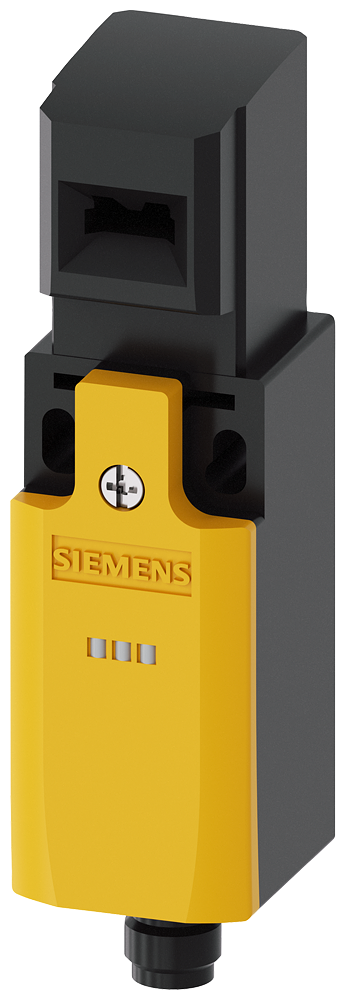

3SF1234-1QV40-1BA1 - INTERLOCK SW, TOP&SIDE ENTRY, 2NC, LED, ASI
by Siemens
Original price
$185.17
-
Original price
$185.17
Original price
$185.17
$185.17
-
$185.17
Current price
$185.17
Safety position switch with separate actuator 5 directions of approaches plastic enclosure, en 50047 asisafe integrated as-i status: 1:f-in1, 2: f-in2 3:as-i/fault slow-action contacts 2 nc with m12 connector 4-pole channel 1 to nc, channel 2 to nc
Item | Value |
---|---|
Country of Origin | DE |
Width sensor | 31 mm |
Forced opening | true |
Height of sensor | 33 mm |
Length of sensor | 118 mm |
Type of interface | None |
Material housing | Plastic |
With status indication | true |
Degree of protection (IP) | IP65 |
Construction type housing | Cuboid |
Type of electric connection | Other |
Suitable for safety functions | true |
Number of safety auxiliary contacts | 2 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Number of contacts as change-over contact | 0 |
Type of switching contact | Slow-action switch |
Number of contacts as normally open contact | 0 |
Ambient temperature during operating | -25 °C |
Number of contacts as normally closed contact | 2 |
Type of interface for safety communication | AS-Interface Safety at Work |
