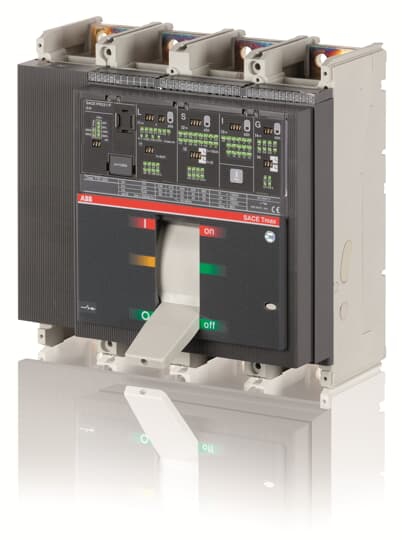

1SDA063004R1 - T7S 1600 PR331/P LSIG In=1600A 4p F F
by ABB
Original price
$4,712.77
-
Original price
$4,712.77
Original price
$4,712.77
$4,712.77
-
$4,712.77
Current price
$4,712.77
C.BREAKER TMAX T7S 1600 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR331/P-LSIG R 1600
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Information | 9AKK10103A1059 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | 17a3b28d-9bb2-4b0e-8379-120a0807fb7c Italy (IT) |
Simplified SCIP | 1d7e49d2-521e-43c3-a8fa-07fe13981546 Poland (PL)e39d1600-8a28-4a08-9523-104ed6b04be0 Norway (NO)1b98cd05-0461-470f-b757-12dfea5afea4 Netherlands (NL)fac78540-c403-422c-83e3-b97e79631341 Poland (PL)1bc0b4e1-536b-4d2f-a259-a5c5b830cd90 France (FR)2960d033-9545-4d4d-b676-c8d4224f3a2c Sweden (SE)10fa285d-7ffc-41d6-a0da-25c3362c2957 Germany (DE)8f43c049-5ac7-454b-bf33-85e867fbe321 Germany (DE)f7cffda4-0d38-45d7-a6c4-49516f3e88d6 France (FR)a30b9b17-1b04-4d78-8bc3-acfbfb1f883f Netherlands (NL)01bc387a-95be-4ce8-8803-6729c5bfcd08 Spain (ES)fb482673-2dec-48fb-88d2-677032fafebc Estonia (EE)8ab9390e-ea8e-4f1e-bc72-23a61c9a49ec Greece (GR)0e09a96e-10a6-4dc8-8c3e-6972837a88a7 Portugal (PT)c735aef0-ff77-4417-aca1-b2143348d9d3 Bulgaria (BG)a762645f-9185-4d8b-b264-a1c176b6737c Sweden (SE)206d4ef7-328a-45b9-b503-30e86ed61616 Netherlands (NL)14377f91-f709-4c92-ad9c-94ae89abd609 Netherlands (NL)4d98ecb6-52d2-4134-adcd-e3050aee523e Czech Republic (CZ)505658cc-baba-4232-a6cd-eaf59636b1eb Croatia (HR)3d9e3231-1ac9-4989-859a-b5bf5cdedcce Poland (PL)51e6d3a4-e034-421f-9f34-a43ac158d111 Germany (DE)d4508bf4-281f-4ee3-90c0-a8f2f502c7a4 Germany (DE)21f77668-88ae-45e6-86f4-081a22e15837 Finland (FI)77fa5cf6-7d97-4e0c-9001-9b4f3969fc7a Netherlands (NL)cddd1588-70d0-4aed-bc29-3ce5a26d354e Denmark (DK) |
Item | Value |
---|---|
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 280 mm |
Product Net Height | 268 mm |
Product Net Depth / Length | 154 mm |
Product Net Weight | 17.737 kg |
Item | Value |
---|---|
Electrical Durability | 2000 cycle60 cycles per hour |
Mechanical Durability | 10000 cycle60 cycles per hour |
Number of Poles | 4 |
Power Loss | at Rated Operating Conditions per Pole 77 W |
Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 1600 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
Rated Uninterrupted Current (Iu) | 1600 A |
Release | PR331/P LSIG |
Release Type | EL |
Short-Circuit Performance Level | S |
Standards | IEC |
Sub-type | T7 |
Suitable For | T7 |
Suitable for Product Class | Moulded Case Circuit Breakers |
Terminal Connection Type | Fixed Circuit-BreakersFront |
Version | F |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
