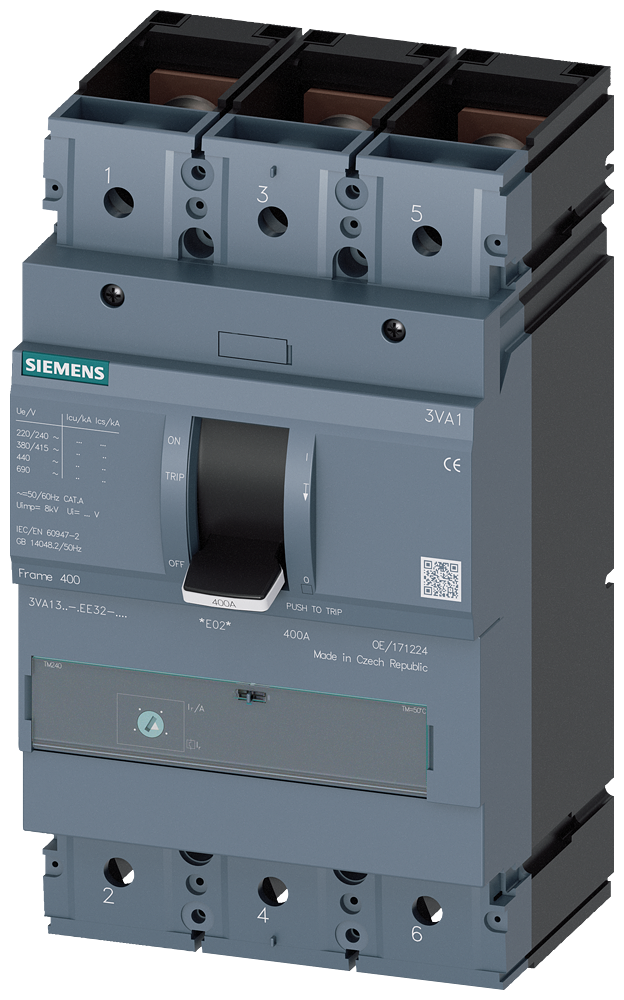

3VA1340-5EE32-0AA0 - BRKR 3VA13 3P 400A 55KA ATFM NUT
by Siemens
Original price
$855.11
-
Original price
$855.11
Original price
$855.11
$855.11
-
$855.11
Current price
$855.11
SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA13 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 3-POLE Icu: (6KAIC AT 600V) (55KAIC AT 415V). TM220 TRIP UNIT WITH ADJUSTABLE Ir FIXED Ii. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 5.4 x 9.8 x 5.4.
Item | Value |
---|---|
Pole number | 3 |
Country of Origin | CZ |
Protection type IP | IP40 |
Motor drive optional | true |
Integrated motor drive | false |
Design of actuating element | Tilt lever |
Number of auxiliary contacts as opener | 0 |
Number of auxiliary contacts as changer | 0 |
Number of auxiliary contacts as shutter | 0 |
integrated earth-fault protection present | false |
Power loss per pole, current-dependent [PlIp] | 30.7 watt |
Position of the connection for the main circuit | Front connection |
Greatest value of tuning range short circuit tripper, undelayed | 4000 ampere |
Lowest value of setting range for short circuit tripper, undelayed | 4000 ampere |
