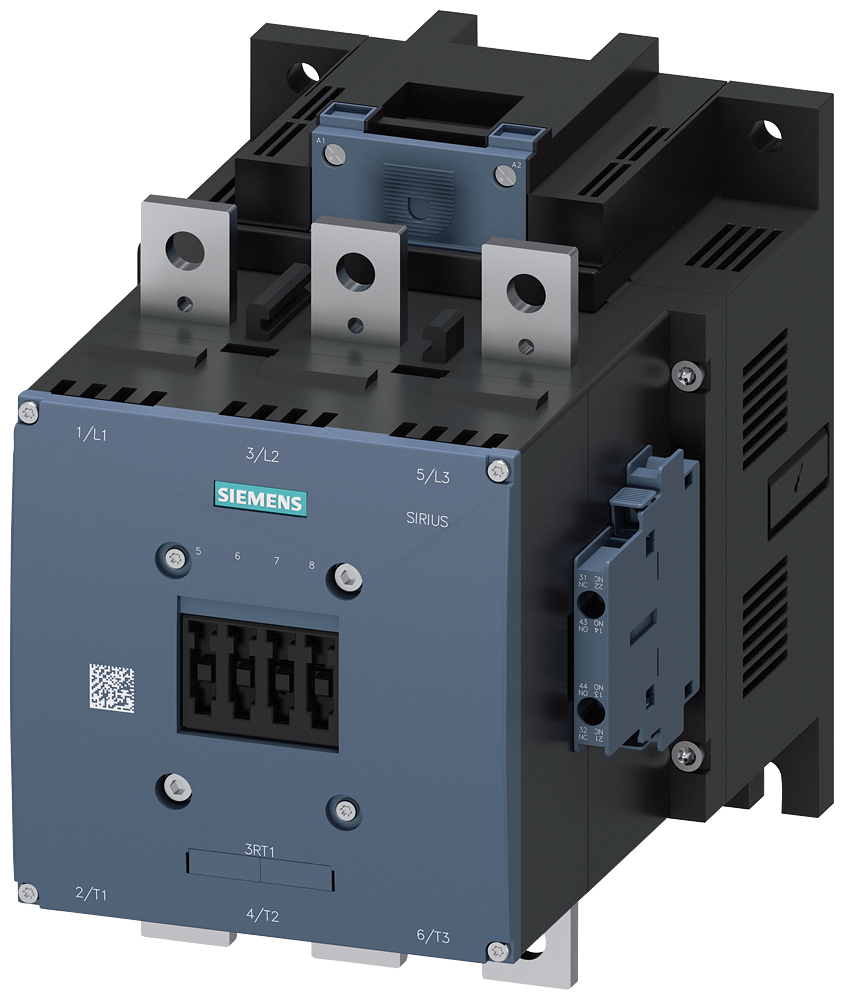

3RT1075-6AD36 - CONTACTOR S12 400A 42-48VUC 3P BAR
by Siemens
Original price
$1,551.44
-
Original price
$1,551.44
Original price
$1,551.44
$1,551.44
-
$1,551.44
Current price
$1,551.44
DRIVE: CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S12 AUXILIARY CONTACTS 2NO+2NC AC/DC OPERATION 42-48V UC CONTACTOR, 200KW/400V/AC-3
| Item | Value |
|---|---|
| Country of Origin | DE |
| Modular version | true |
| Voltage type for actuating | AC/DC |
| Rated operation power NEMA | 220.649625 kW |
| Rated control supply voltage Us at DC | 42 V |
| Rated operation power at AC-3, 400 V | 200 kW |
| Rated operation power at AC-4, 400 V | 200 kW |
| Rated control supply voltage Us at AC 50HZ | 42 V |
| Rated control supply voltage Us at AC 60HZ | 42 V |
| Rated operation current Ie at AC-1, 400 V | 430 A |
| Rated operation current Ie at AC-3, 400 V | 400 A |
| Rated operation current Ie at AC-4, 400 V | 350 A |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Type of electrical connection of main circuit | Rail connection |
