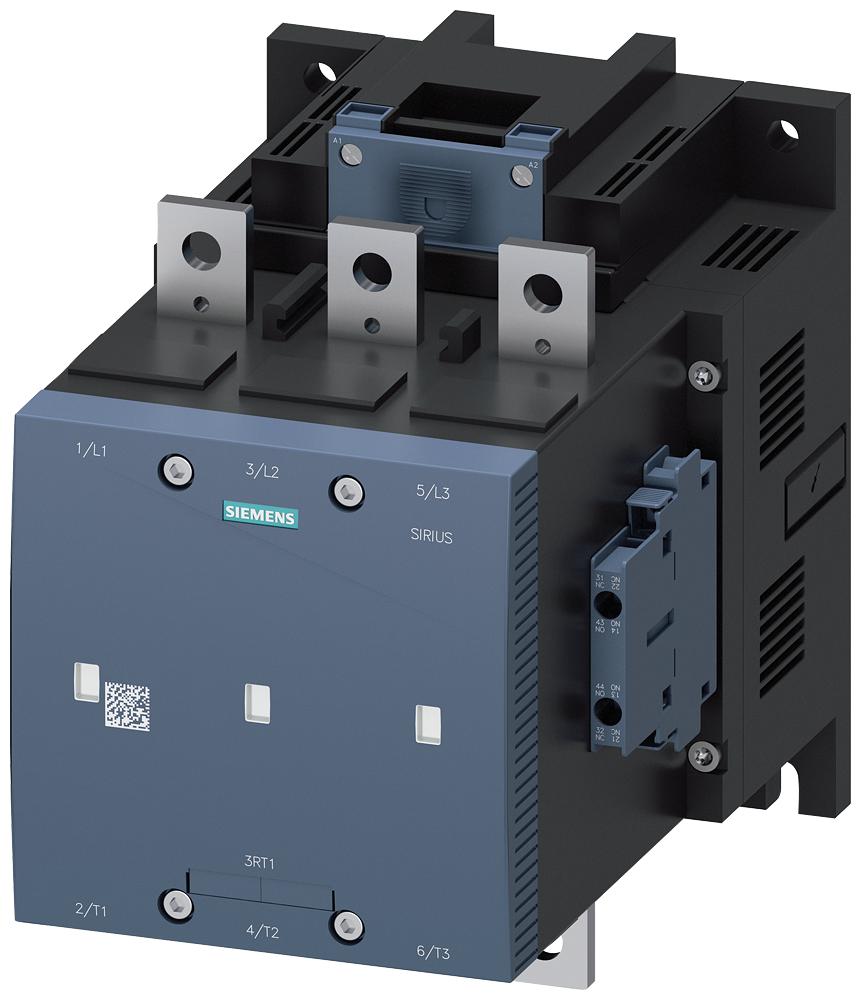

3RT1276-6AB36 - CONTACTOR VAC S12 500A 23-26V 3P BAR
by Siemens
Original price
$2,695.39
-
Original price
$2,695.39
Original price
$2,695.39
$2,695.39
-
$2,695.39
Current price
$2,695.39
DRIVE: CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S12 AUXILIARY CONTACTS 2NO+2NC AC/DC OPERATION 23-26V UC VAC. CONTACTOR, 250KW/400V/AC-3
| Item | Value |
|---|---|
| Country of Origin | DE |
| Modular version | true |
| Voltage type for actuating | AC/DC |
| Rated operation power NEMA | 294.1995 kW |
| Rated control supply voltage Us at DC | 23 V |
| Rated operation power at AC-3, 400 V | 250 kW |
| Rated operation power at AC-4, 400 V | 250 kW |
| Rated control supply voltage Us at AC 50HZ | 23 V |
| Rated control supply voltage Us at AC 60HZ | 23 V |
| Rated operation current Ie at AC-1, 400 V | 610 A |
| Rated operation current Ie at AC-3, 400 V | 500 A |
| Rated operation current Ie at AC-4, 400 V | 430 A |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Type of electrical connection of main circuit | Rail connection |
