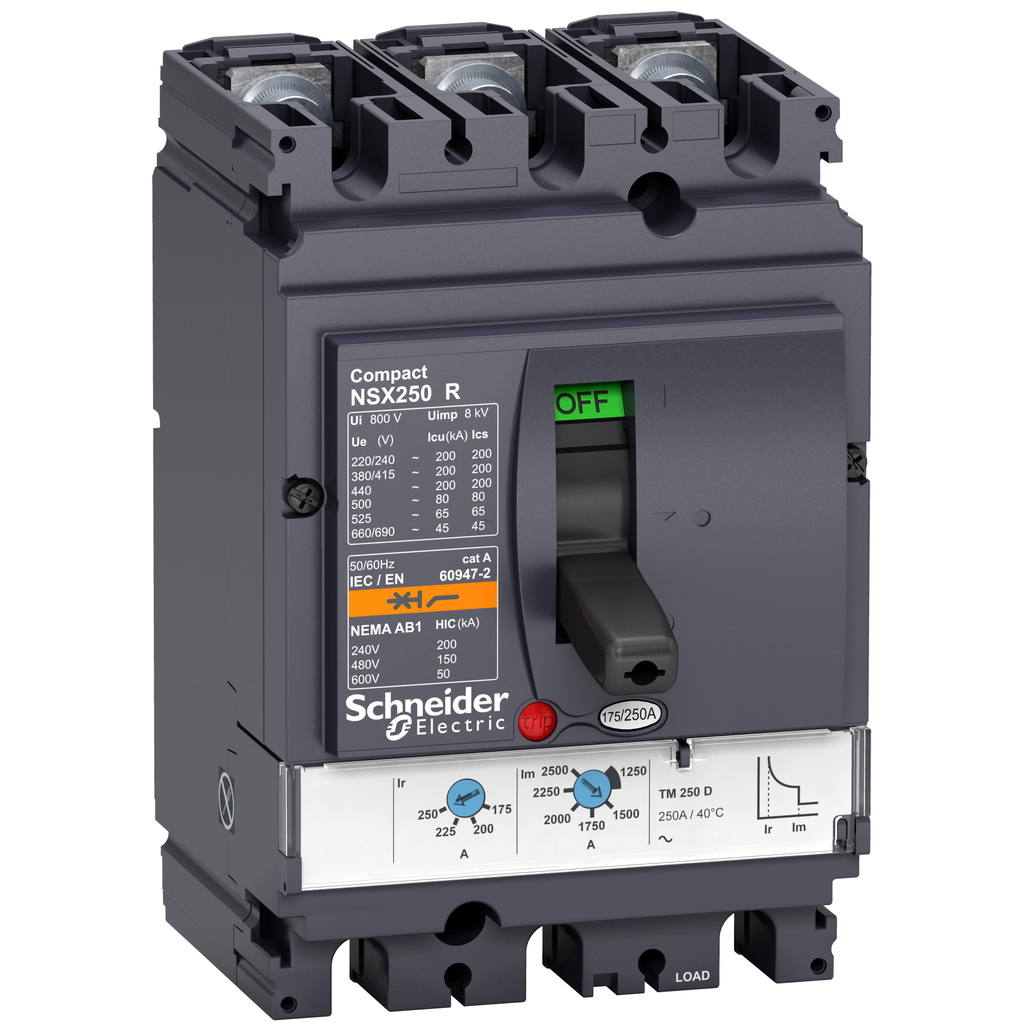

LV433470 - Circuit breaker, ComPact NSX250R, 200kA/415VAC, TMD trip unit 125A, 3 poles 3d

LV433470 - Circuit breaker, ComPact NSX250R, 200kA/415VAC, TMD trip unit 125A, 3 poles 3d

by Schneider Electric
$1,103.09 - $1,103.09
$1,103.09
$1,103.09 - $1,103.09
$1,103.09

This Compact NSX250R is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz and 45kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX250R is part of Schneider Electric EcoStruxure Power architecture.
