LV429434 - Standard motor mechanism module MT100/160, ComPacT NSX100/160, 220/240VAC 50/60Hz, 208/277VAC 60Hz

LV429434 - Standard motor mechanism module MT100/160, ComPacT NSX100/160, 220/240VAC 50/60Hz, 208/277VAC 60Hz

by Schneider Electric
$351.69 - $351.69
$351.69
$351.69 - $351.69
$351.69

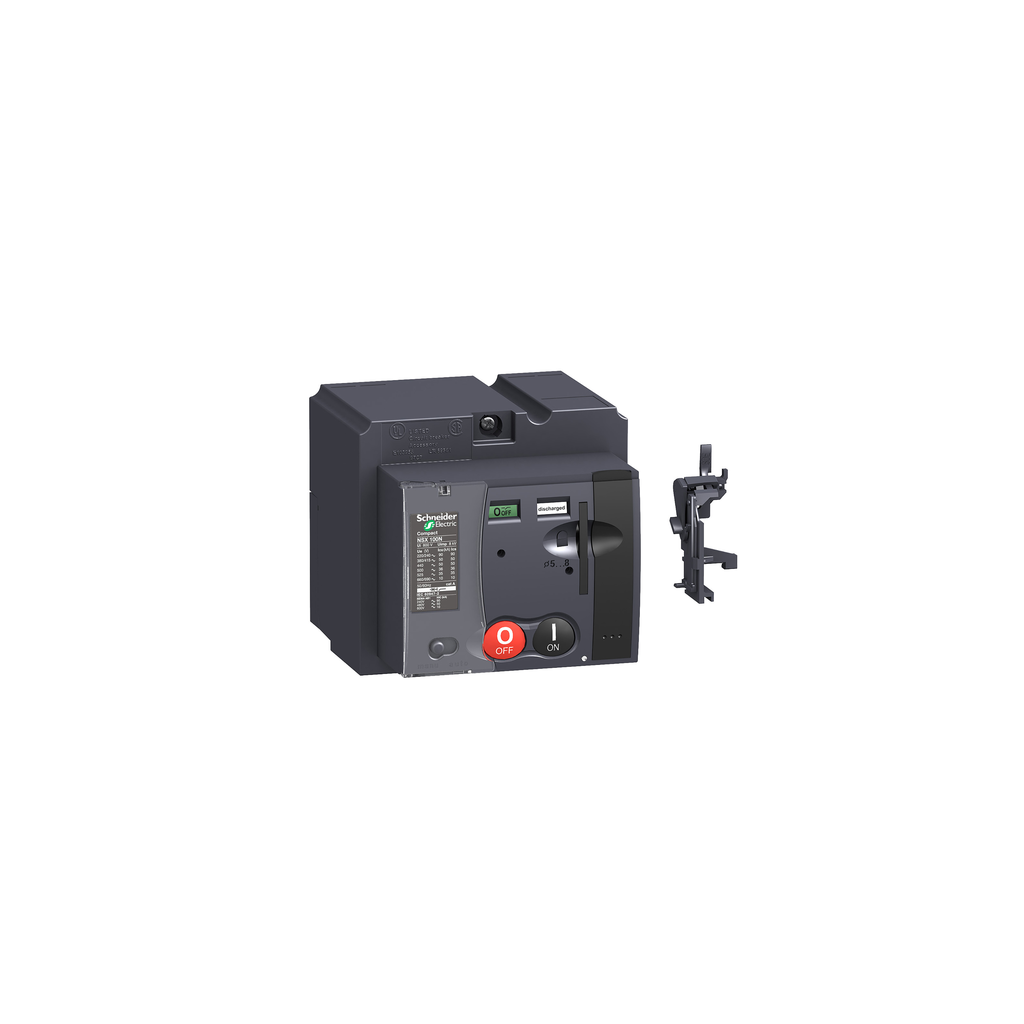

This is a standard motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz or 208VAC to 277VAC 60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.



No Specifications Available.



No Links Available.
