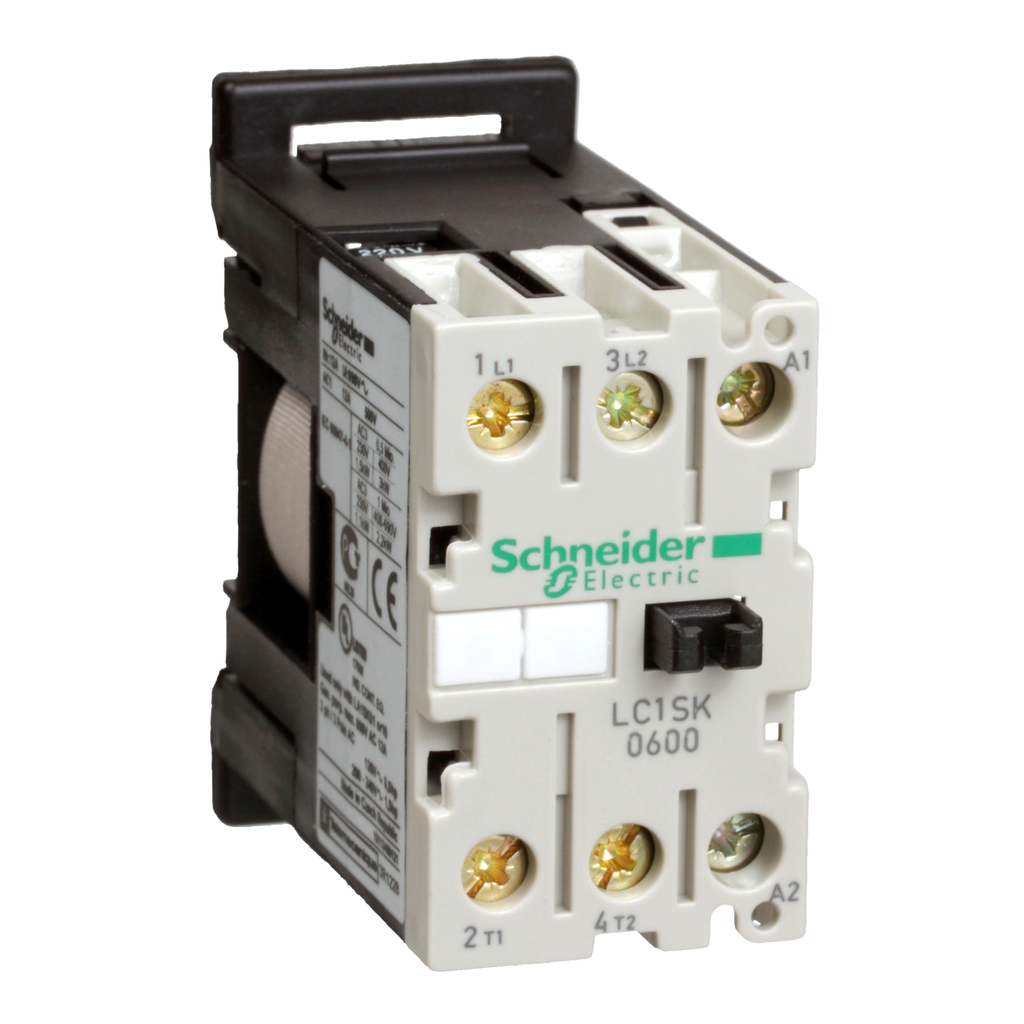

LC1SK0600B7 - Mini contactor, TeSys SK, 2P(2NO), AC-3, 690V 6A, 24V AC coil

LC1SK0600B7 - Mini contactor, TeSys SK, 2P(2NO), AC-3, 690V 6A, 24V AC coil

by Schneider Electric
$25.75 - $25.75
$25.75
$25.75 - $25.75
$25.75

TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 24V 50/60Hz AC control circuit, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
