1SCA128481R1001 - OT3200E03P SWITCH-DISCONNECTOR

1SCA128481R1001 - OT3200E03P SWITCH-DISCONNECTOR

by ABB
$2,818.59 - $2,818.59
$2,818.59
$2,818.59 - $2,818.59
$2,818.59

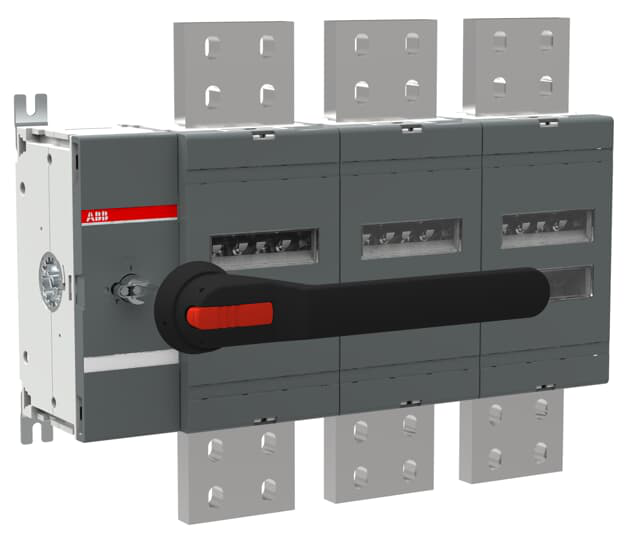

3-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Environmental Information 1SCC301269D0201
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 514 mm
Product Net Height 410 mm
Product Net Depth / Length 146 mm
Product Net Weight 32.6 kg

Technical
Item Value
Rated Operational Current AC-21B (Ie) (380 ... 415 V) 3200 A
Rated Operational Current AC-22B (Ie) (380 ... 415 V) 3200 A
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 3200 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 1000 V
Rated Operational Voltage Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm) (690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 65 kA
Power Loss at Rated Operating Conditions per Pole 95 W
Pollution Degree 3
Handle Color Black
Handle Type Handle and shaft included
Switches Operating Mechanism Mechanism at the End of the Switch03 (Left Side)
Distance Between Phases Standard
Position of Line Terminals Top In - Bottom OutBottom In - Top Out
Operating Mode Front operated
Standards IEC 60947-3
Special Functions No
Mounting Type Base mounting
Number of Poles 3
Degree of Protection Front IP00
Terminal Type Lug terminals
Tightening Torque acc. IEC 60947-1 50 … 75 N·m
Mechanical Durability 5000
Lock Type Yes

Technical UL/CSA
Item Value
Tightening Torque acc. IEC 60947-1 50 … 75 N·m

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information 1SCC301269D0201

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC000216 - Switch disconnector (low voltage)
eClass V11.1 : 27371403
WEEE Category 4. Large Equipment (Any External Dimension More Than 50 cm)
