1SDA067435R1 - XT1S 160 TMD 125-1250 3p F F
by ABB
Original price
$218.53
-
Original price
$218.53
Original price
$218.53
$218.53
-
$218.53
Current price
$218.53

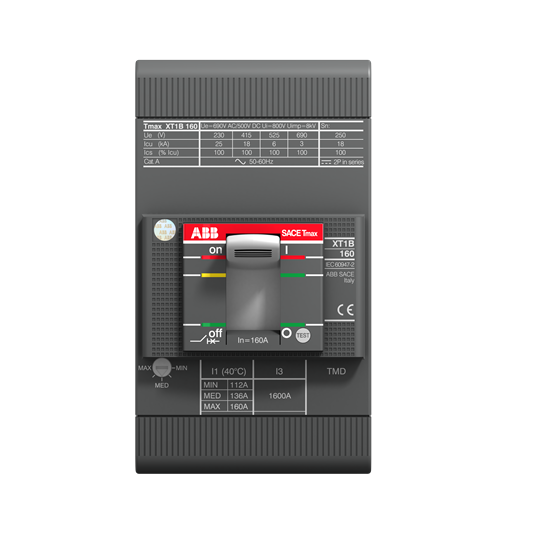

C.BREAKER TMAX XT1S 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 125-1250 A
Item | Value |
---|---|
ABB EcoSolutions | Yes |
Item | Value |
---|---|
Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 60.9 % |
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
End of Life Instructions | 9AKK108468A2347 |
Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Product Declaration - EPD | 9AKK108468A1890 |
Item | Value |
---|---|
Environmental Information | 9AKK107991A8215 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | f49e4001-b08f-46d2-aec9-37b945766b1d Italy (IT) |
Simplified SCIP | cfe829c4-b6c3-4879-9507-f15039ffd86c Sweden (SE)2a94369a-734b-4df7-8fcf-c36922f1aba0 Poland (PL)1cdbca59-5f98-44a2-835f-d055e7924342 France (FR)27f49697-30c4-477a-b4fb-7271aa4f48cb Poland (PL)9127d225-fc4c-41c3-bd74-bcb68dd46d1b Norway (NO)f98eaf2e-b87a-41ce-97c6-879625fb971b Finland (FI)79501aa2-5248-44da-a7b0-808e13ef71b9 Netherlands (NL)512432ce-69af-49af-b82b-7260dc6b76a8 Germany (DE)6d095fbb-3bba-4f6e-87eb-1a4c92c94602 Denmark (DK)d0a98648-603b-4c77-bb62-99a655c21541 Germany (DE)08b211a3-b478-4784-a423-35db653a0e71 Croatia (HR)22741f6d-824f-4ff3-abf8-d0b1c0263f08 Czech Republic (CZ)468b16fc-4fb5-4a77-b48d-e7939637d3a4 Poland (PL)d753857d-60c7-456b-a13c-7595c65cdfc6 Spain (ES)e476f6db-ca78-4f98-8f4f-c38fe9bc0031 Netherlands (NL)c119fa8f-cab9-4902-b2f9-ec577586e6fe Bulgaria (BG)cfe829c4-b6c3-4879-9507-f15039ffd86c Sweden (SE)e476f6db-ca78-4f98-8f4f-c38fe9bc0031 Netherlands (NL)2a94369a-734b-4df7-8fcf-c36922f1aba0 Poland (PL)e5ffbce1-7a2e-4c5a-8693-0fa33da75ed7 Netherlands (NL)485650d8-2a42-4080-8208-3aaf52652d23 Netherlands (NL)cb02c5ac-ea0b-4278-aea1-b11b43ba863d Estonia (EE)ae988fe3-380c-4310-884d-5b8d120a6e1c Greece (GR)e72967d3-5e07-4ddc-9adf-2a92a33d7af1 Portugal (PT)72006772-dc2f-42ba-bf7a-eea75a5fe43d Sweden (SE)131e1472-b737-4e6c-8a83-2765eb48e459 Germany (DE)2c1366ff-ebab-438d-b493-910828f8de0e Germany (DE)f437e8ce-11bd-4a59-ba5d-53075c7c543a France (FR)ace5b4f1-ff53-4adb-a0da-a497a76c3ced Netherlands (NL)1cdbca59-5f98-44a2-835f-d055e7924342 France (FR)72006772-dc2f-42ba-bf7a-eea75a5fe43d Sweden (SE)131e1472-b737-4e6c-8a83-2765eb48e459 Germany (DE)2c1366ff-ebab-438d-b493-910828f8de0e Germany (DE)f437e8ce-11bd-4a59-ba5d-53075c7c543a France (FR)ace5b4f1-ff53-4adb-a0da-a497a76c3ced Netherlands (NL)d753857d-60c7-456b-a13c-7595c65cdfc6 Spain (ES)27f49697-30c4-477a-b4fb-7271aa4f48cb Poland (PL)9127d225-fc4c-41c3-bd74-bcb68dd46d1b Norway (NO)f98eaf2e-b87a-41ce-97c6-879625fb971b Finland (FI)79501aa2-5248-44da-a7b0-808e13ef71b9 Netherlands (NL)512432ce-69af-49af-b82b-7260dc6b76a8 Germany (DE)6d095fbb-3bba-4f6e-87eb-1a4c92c94602 Denmark (DK)d0a98648-603b-4c77-bb62-99a655c21541 Germany (DE)08b211a3-b478-4784-a423-35db653a0e71 Croatia (HR)22741f6d-824f-4ff3-abf8-d0b1c0263f08 Czech Republic (CZ)468b16fc-4fb5-4a77-b48d-e7939637d3a4 Poland (PL)e5ffbce1-7a2e-4c5a-8693-0fa33da75ed7 Netherlands (NL)485650d8-2a42-4080-8208-3aaf52652d23 Netherlands (NL)cb02c5ac-ea0b-4278-aea1-b11b43ba863d Estonia (EE)ae988fe3-380c-4310-884d-5b8d120a6e1c Greece (GR)e72967d3-5e07-4ddc-9adf-2a92a33d7af1 Portugal (PT)c119fa8f-cab9-4902-b2f9-ec577586e6fe Bulgaria (BG) |
Item | Value |
---|---|
Order Code US and Canada | XT1SE3125AFF000XXX |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 76.2 mm |
Product Net Height | 130 mm |
Product Net Depth / Length | 70 mm |
Product Net Weight | 1.1 kg |
Item | Value |
---|---|
Circuit Breaker Type to be Associated | Power Distribution |
Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
Current Type | AC/DC |
Electrical Durability | 120 cycles per hour8000 cycle |
Mechanical Durability | 240 cycles per hour25000 cycle |
Number of Poles | 3 |
Opening Time | CB with SOR 15 msCB with UVR 15 ms |
Order Multiple | 1 piece |
Power Loss | at Rated Operating Conditions per Pole 10.7 W |
Product Main Type | SACE Tmax XT |
Product Name | Leistungsschalter |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 125 A |
Rated Frequency (f) | 50 / 60 Hz |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Instantaneous Short-Circuit Current Setting (Ii) | 1250 A |
Rated Insulation Voltage (Ui) | 800 V |
Rated Operational Voltage | 690 V AC500 V DC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 63.75 kA(230 V AC) 63.75 kA(240 V AC) 63.75 kA(380 V AC) 50 kA(415 V AC) 37.5 kA(440 V AC) 25 kA(500 V AC) 18 kA(525 V AC) 17.5 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 50 kA(500 V DC) 3 Poles in Series 50 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA(230 V AC) 85 kA(240 V AC) 85 kA(380 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 36 kA(525 V AC) 35 kA(690 V AC) 8 kA(250 V DC) 2 Poles in Series 50 kA(500 V DC) 3 Poles in Series 50 kA |
Rated Uninterrupted Current (Iu) | 160 A |
Recommended Screw Driver | Main Circuit M6 |
Release | TMD |
Release Type | TM |
Setting Range | 87.5...125 A |
Short-Circuit Performance Level | S |
Standards | IEC |
Sub-type | XT1 |
Terminal Connection Type | Front |
Terminal Type | Bolt |
Tightening Torque | 6 N·m |
Version | F |
CAD Dimensional Drawing | 1SDH001295R0008 |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
