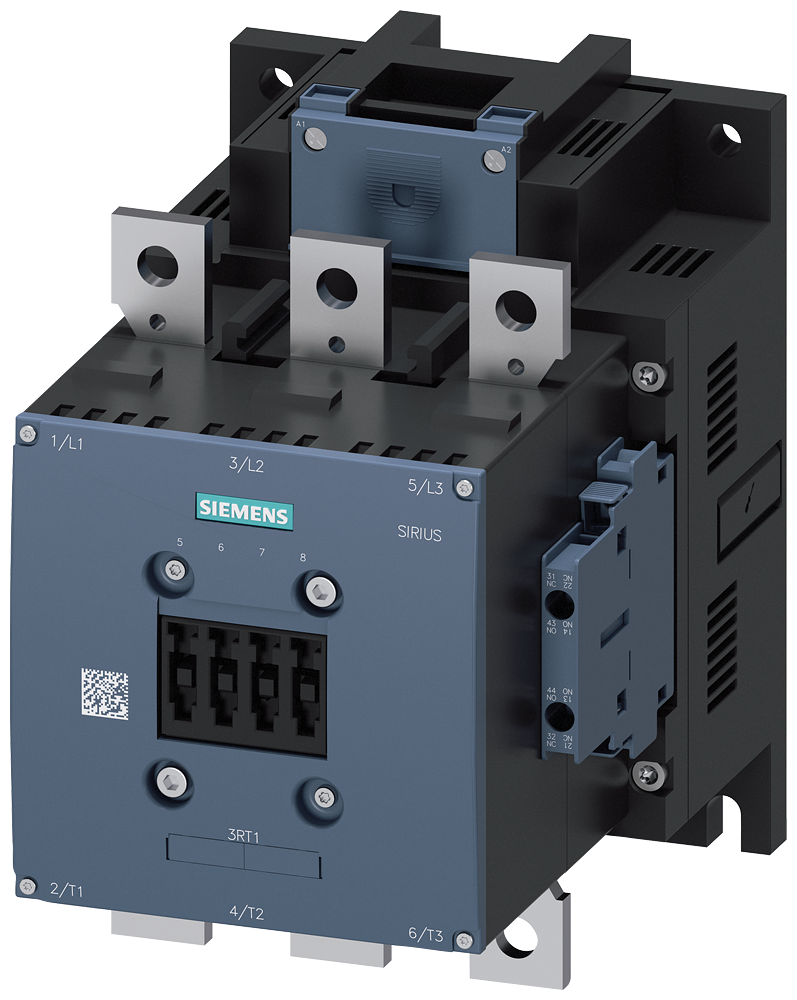

3RT1064-6AR36 - CONTACTOR S10 225A 440-480VUC 3P BAR
by Siemens
Original price
$745.27
-
Original price
$745.27
Original price
$745.27
$745.27
-
$745.27
Current price
$745.27
Drive conventional rail connections 3-pole, size s10 auxiliary contacts 2NO+2NC AC/DC operation 440-480v uc contactor, 110KW/400v/AC-3
| Item | Value |
|---|---|
| Country of Origin | DE |
| Modular version | true |
| Voltage type for actuating | AC/DC |
| Rated operation power NEMA | 110.3248125 kW |
| Rated control supply voltage Us at DC | 440 V |
| Rated operation power at AC-3, 400 V | 110 kW |
| Rated operation power at AC-4, 400 V | 110 kW |
| Rated operation current Ie at AC-1, 400 V | 275 A |
| Rated operation current Ie at AC-3, 400 V | 225 A |
| Rated operation current Ie at AC-4, 400 V | 195 A |
| Rated control supply voltage Us at AC 50HZ | 440 V |
| Rated control supply voltage Us at AC 60HZ | 440 V |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Type of electrical connection of main circuit | Rail connection |
