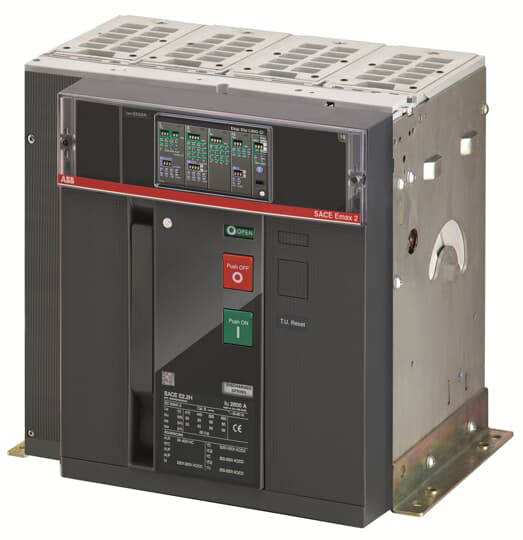

1SDA071551R1 - E2.2N 1000 Ekip Dip LI 4p F HR
by ABB
Original price
$4,908.34
-
Original price
$4,908.34
Original price
$4,908.34
$4,908.34
-
$4,908.34
Current price
$4,908.34
C.BREAKER SACE EMAX2 E2.2N 1000 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Item | Value |
---|---|
ABB EcoSolutions | Yes |
Item | Value |
---|---|
Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
End of Life Instructions | 9AKK108468A2361 |
Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Product Declaration - EPD | 9AKK108468A1902 9AKK108468A1909 |
Item | Value |
---|---|
Environmental Information | 9AKK10103A1038 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | a1a36d57-736d-484b-9eb7-6e6849cf9646 Italy (IT) |
Simplified SCIP | b3b9903f-575f-43c0-af10-410a6825e15c Hungary (HU)0a315ff0-4fc3-49a0-b14b-bae5cf5eec23 Belgium (BE)6ca57a7b-0401-443c-a420-26abe7b5620c Spain (ES)fdc9c0b9-b9d1-456f-8875-26f7cbbbca9b Norway (NO)76cb3f1c-6192-4acd-a5a2-cd327b3e1f7b Poland (PL)0bf9acfa-f965-42ac-8496-dbce9a9f5c88 Hungary (HU)d8da7285-1b55-4d7f-9d52-2d54ffbb4bda Germany (DE)beeb9f45-c5f6-4499-9b32-7799fa0a9907 Denmark (DK)ca62c5de-5cd0-4118-a4e3-fa3efd215242 Germany (DE)7a4282f7-fa21-437a-865a-aaa9ce864703 Belgium (BE)2e7dc358-ac4b-4e6c-8c8c-12efddd3b36e Sweden (SE)94b5a21d-01bd-4852-b113-e4e715a9acea Estonia (EE)43dd7adf-1c24-413b-bc2f-ec79861c2ff9 France (FR)d79ec58b-1596-4ba4-a182-9da43645249f Finland (FI)61a4ef4a-163a-41ea-abcf-41db5a4ba739 Netherlands (NL)4bebc7ee-dd1a-4e94-b719-45e47577ad11 Greece (GR)e71c8f96-adc5-489b-a180-1c155154d162 Germany (DE)6d6e8b2c-b2be-47ba-8ccb-0cdde92fee56 Germany (DE)f514cc91-6800-4aa2-9a78-8da5bd915d93 Croatia (HR)c17cd921-824a-4a5b-87fa-ffe304fdd0e2 Bulgaria (BG)525e4fe7-3715-4d54-8e64-4567fd09af6c France (FR)22d649e8-b98a-4ab6-9ae7-9b2a3413da89 Poland (PL)8c3743e9-7ac2-4f9a-aa1f-da5e8948d218 Poland (PL)2f3d467a-0da4-43cf-8379-4fa24bd54490 Sweden (SE)2b9f46ff-a3c5-4ab2-bf9d-c57c3ad5d09f Portugal (PT)c518f5b4-3463-4344-8187-d3a36ad6c664 Czech Republic (CZ) |
Item | Value |
---|---|
Order Code US and Canada | ZBNQEGBA000A000000XX |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 366 mm |
Product Net Height | 371 mm |
Product Net Depth / Length | 270 mm |
Product Net Weight | 53 kg |
Item | Value |
---|---|
Current Type | AC |
Electrical Durability | Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour |
Mechanical Durability | 25000 cycle60 cycles per hour |
Neutral Pole Current ([%Iu]) | 100 % |
Number of Poles | 4 |
Power Loss | 53 W |
Product Main Type | SACE Emax 2 |
Product Name | Air Circuit Breaker |
Product Type | Air Circuit Breaker |
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
Rated Current (In) | 1000 A |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
Rated Insulation Voltage (Ui) | AC 1000 V |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kAfor 3 s 50 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA |
Rated Uninterrupted Current (Iu) | 1000 A |
Recommended Screw Driver | Main Circuit M12 |
Release | Ekip Dip LI |
Release Type | EL |
Short-Circuit Performance Level | N |
Standards | IEC |
Sub-type | E2.2 |
Terminal Connection Type | Rear flat Horizontal |
Terminal Type | Bolt |
Tightening Torque | 70 N·m |
Version | F |
CAD Dimensional Drawing | 1SDH001252R0123 |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
