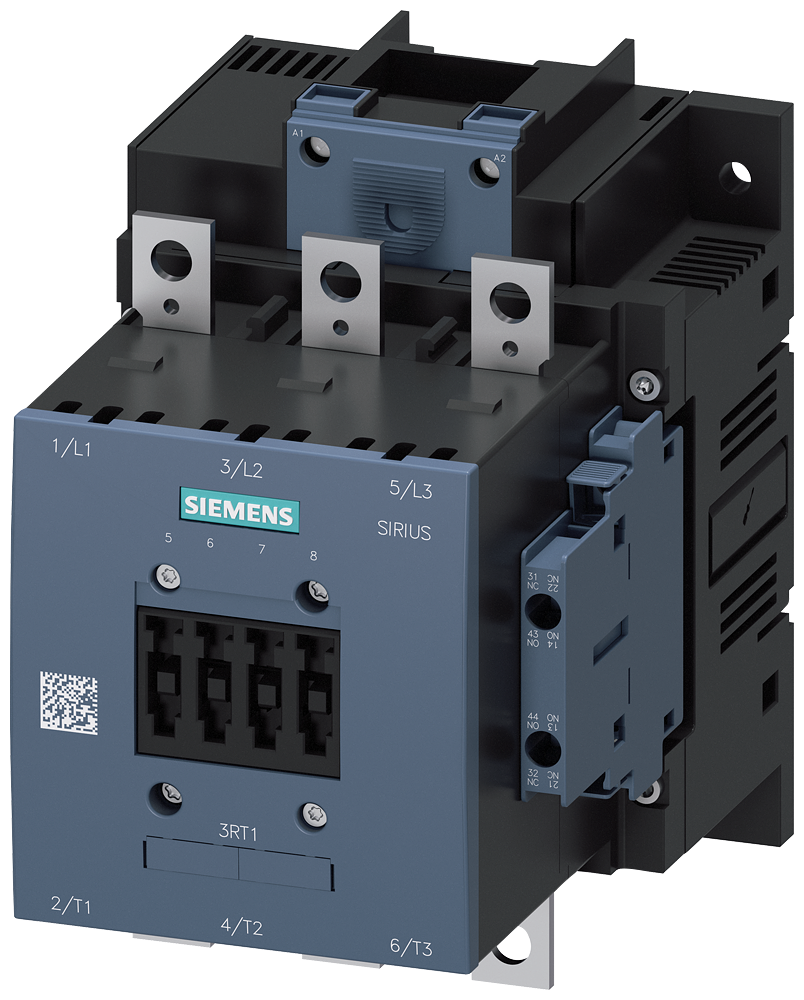

3RT1055-6AP36 - CONTACTOR S6 150A 220-240VUC 3P BAR
by Siemens
Original price
$502.22
-
Original price
$502.22
Original price
$502.22
$502.22
-
$502.22
Current price
$502.22
Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 220 - 240 AC/DC Coil Frame Size S6,150A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5
Item | Value |
---|---|
Country of Origin | DE |
Modular version | true |
Voltage type for actuating | AC/DC |
Rated operation power NEMA | 91.93734375 kW |
Rated operation power at AC-3, 400 V | 75 kW |
Rated operation power at AC-4, 400 V | 75 kW |
Rated control supply voltage Us at DC | 220 V |
Rated operation current Ie at AC-1, 400 V | 185 A |
Rated operation current Ie at AC-3, 400 V | 150 A |
Rated operation current Ie at AC-4, 400 V | 132 A |
Rated control supply voltage Us at AC 50HZ | 220 V |
Rated control supply voltage Us at AC 60HZ | 220 V |
Number of main contacts as normally open contact | 3 |
Number of auxiliary contacts as normally open contact | 2 |
Number of auxiliary contacts as normally closed contact | 2 |
Type of electrical connection of main circuit | Rail connection |
