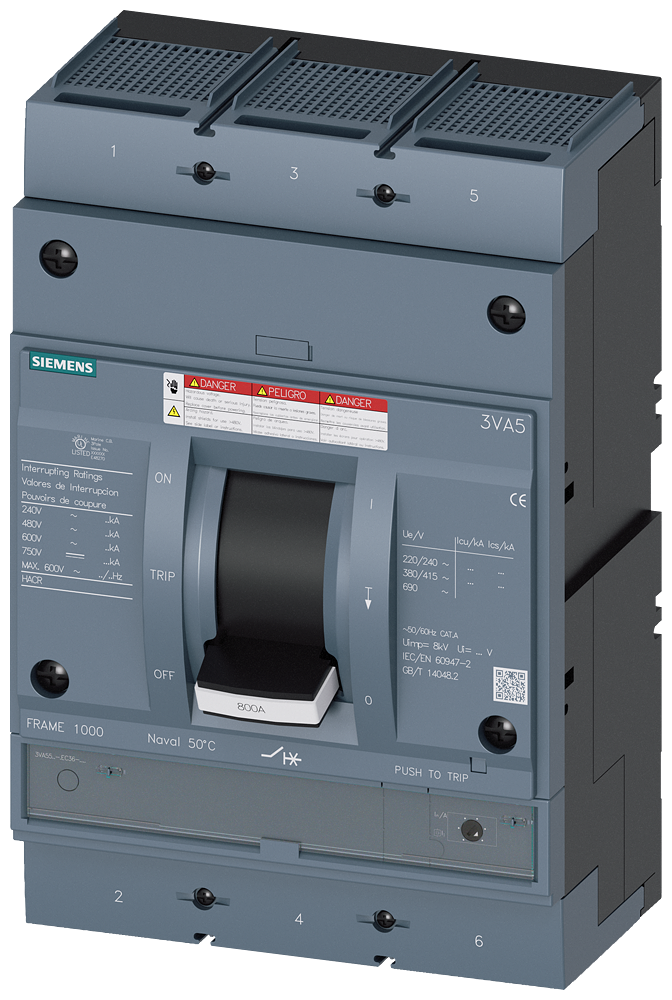

3VA5560-6EC36-1AA0 - BRKR 3VA55 3P 600A 65KA FTAM NAV LUG
by Siemens
Original price
$1,865.00
-
Original price
$1,865.00
Original price
$1,865.00
$1,865.00
-
$1,865.00
Current price
$1,865.00
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM (CLASS H) BREAKING CAPACITY. 600A 3-POLE (22KAIC AT 600V) (65KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii. SPECIAL FEATURES: LINE AND LOAD LUGS INSTALLED NAVAL RATED 50C. DIMENSIONS (W x H x D) IN: 8.3 x 12.5 x 5.8.
| Item | Value |
|---|---|
| Number of poles | 3 |
| Country of Origin | CZ |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 600 A |
| With switched-off indicator | false |
| Type of control element | Rocker lever |
| Overload release current setting | 600 A |
| Integrated earth fault protection | false |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | true |
| Suitable for DIN rail (top hat rail) mounting | true |
| Type of electrical connection of main circuit | Other |
| Number of auxiliary contacts as change-over contact | 0 |
| Adjustment range undelayed short-circuit release | 3000 A |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Position of connection for main current circuit | Front side |
| Device construction | Built-in device fixed built-in technique |
