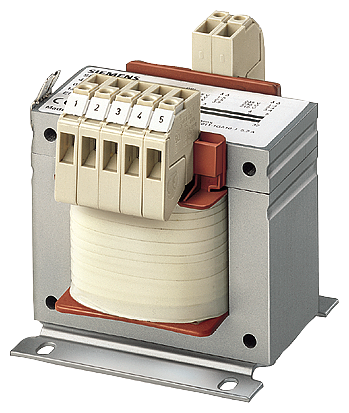

4AM3442-5AT10-0FA0 - XFMR, 1-PH, 0.1 /0.31KVA, PRI 400V, SEC 230V

4AM3442-5AT10-0FA0 - XFMR, 1-PH, 0.1 /0.31KVA, PRI 400V, SEC 230V

by Siemens
$135.79 - $135.79
$135.79
$135.79 - $135.79
$135.79

TRANSFORMER< TRANSFORMER< >ISOLATION -2-4 >CONTROL CIRCUIT RAILS; EN 61558-2-1, -2-2, INSTALLATION:SCREWS/MOUNTING CONNECTION; TERMINALS:SCREW/TAB TA/ISOKL:40 /B; IP00; TYPE OF VECTOR GR./SHIELD WNG.:II0 /0; ISEC(A):0,43; F(HZ):50...60; UPRI(V):400+/-5%; USEC(V):230; PN/PN(S6)(KVA):0,1 /0,31; TRANSFORMER SITAS; PHASES:1;



Specifications
Item Value
Country of Origin CZ
Width 86 millimetre
Depth 102 millimetre
Height 98 millimetre
Protection type IP IP00
max. primary voltage 1 420 volt
max. primary voltage 2 400 volt
max. primary voltage 3 380 volt
min. primary voltage 1 420 volt
min. primary voltage 2 400 volt
min. primary voltage 3 380 volt
Rated performance 100 volt ampere
max. secondary voltage 1 230 volt
min. secondary voltage 1 230 volt
designed as safety transformer false
suitable for series installation false
designed as isolating transformer false
designed as compensator transformer false
suitable for circuit-board mounting false
Insulation Material Class acc. to IEC 85 B
relative short-circuit voltage 8.28 percent
